ADG790BCBZ-REEL
IC MULTIPLEXER QUAD 30WLCSPManufacturer: Analog Devices Inc.
Categories: Special Purpose
Quality Control: Learn More
Analog Devices Inc. ADG790BCBZ-REEL is a 6-channel analog multiplexer/demultiplexer designed for high-performance applications. This device features a 2:1 and 4:1 multiplexer/demultiplexer configuration, supporting SPDT and SP4T switch functions. With an impressive -3dB bandwidth of 550MHz, it is well-suited for demanding audio, telecommunications, USB, and video signal routing. The ADG790BCBZ-REEL offers a low on-state resistance, typically 8.8 Ohms maximum, ensuring minimal signal degradation. Its break-before-make switching feature prevents signal contention. Operating from a single supply voltage of 1.65V to 3.6V, this component is available in a compact 30-UFBGA, WLCSP package, supplied on tape and reel for efficient surface mount assembly. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Break-Before-Make |
| Packaging | Tape & Reel (TR) |

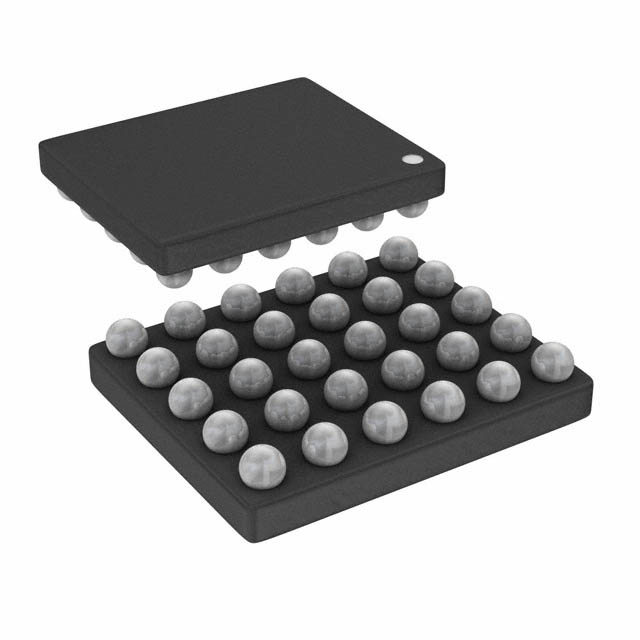

| Package / Case | 30-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Audio, Telecommunications, USB, Video |
| On-State Resistance (Max) | 8.8Ohm |
| -3db Bandwidth | 550MHz |
| Supplier Device Package | 30-WLCSP (2.5x3) |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPDT, SP4T |
| Multiplexer/Demultiplexer Circuit | 2:1, 4:1 |
| Number of Channels | 6 |
