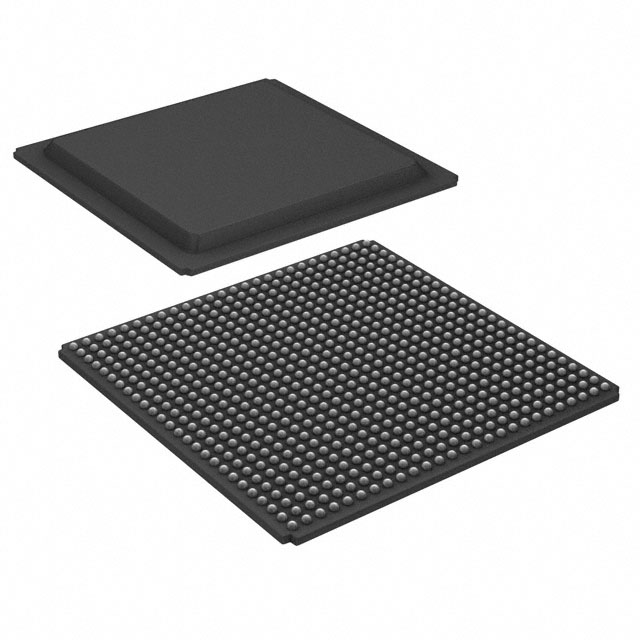

AD8178ABPZ
IC VIDEO CROSSPOINT SWIT 676BGAManufacturer: Analog Devices Inc.
Categories: Special Purpose
Quality Control: Learn More
Analog Devices Inc. AD8178ABPZ is a 3-channel video crosspoint switch IC. This device offers a 16:5 multiplexer/demultiplexer configuration, supporting buffered RGB signals. With a -3dB bandwidth of 450MHz, it is well-suited for high-performance video applications. The AD8178ABPZ operates from a single supply voltage of 4.5V to 5.5V or dual supplies of ±2.5V. It is available in a 676-PBGA (27x27) surface-mount package. Typical applications include professional video routing, broadcast equipment, and high-definition display systems. The operating temperature range is -40°C to 85°C (TA).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Buffered, RGB |
| Packaging | Tube |
| Package / Case | 676-BGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Video |
| On-State Resistance (Max) | - |
| -3db Bandwidth | 450MHz |
| Supplier Device Package | 676-PBGA (27x27) |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:5 |
| Number of Channels | 3 |
