AD8118ABPZ

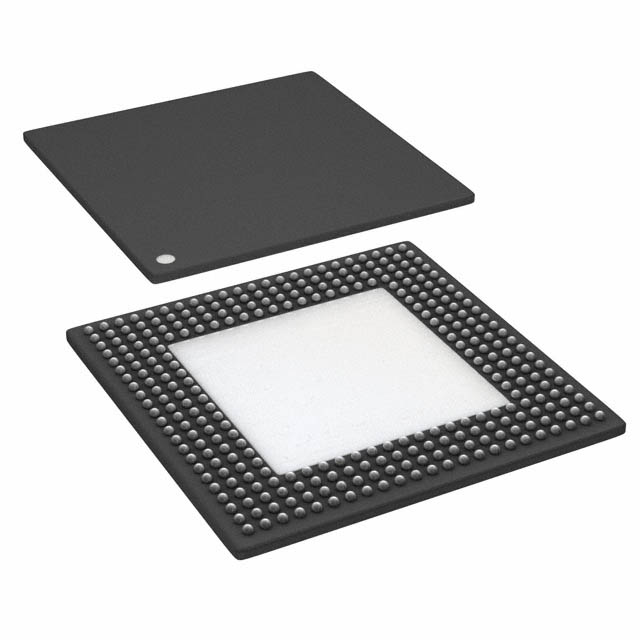

IC CROSSPOINT SWIT 32X32 304BGAManufacturer: Analog Devices Inc.
Categories: Special Purpose
Quality Control: Learn More
Analog Devices Inc. AD8118ABPZ is a 32x32 crosspoint switch with a 600MHz -3dB bandwidth, ideal for video signal routing applications. This electronic component features buffered outputs and supports RGB signals, offering high-performance switching capabilities. Designed for surface mounting, it is supplied in a 304-BGA Exposed Pad package (31x31). The AD8118ABPZ operates with a single supply voltage of 4.5V to 5.5V or dual supplies of ±2.5V, with an operating temperature range of -40°C to 85°C. Its functionality is well-suited for broadcast video, professional video equipment, and other high-bandwidth video distribution systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Buffered, RGB |
| Packaging | Box |
| Package / Case | 304-BGA Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Video |
| On-State Resistance (Max) | - |
| -3db Bandwidth | 600MHz |
| Supplier Device Package | 304-BGA-ED (31x31) |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 32:32 |
| Number of Channels | 1 |
