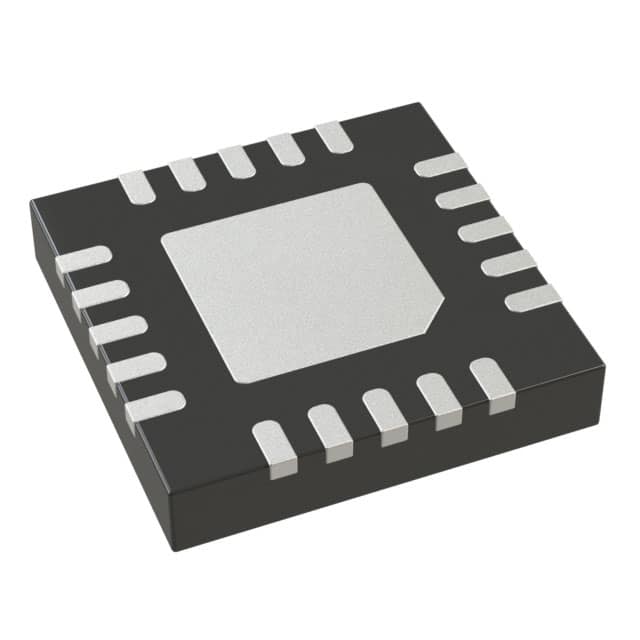

ADA4558WHCPZ-R7
PRESSURE SENSOR IC W/ LIN INTERFManufacturer: Analog Devices Inc.
Categories: Sensor and Detector Interfaces
Quality Control: Learn More
Analog Devices Inc. ADA4558WHCPZ-R7 is a high-performance sensor conditioner IC designed for demanding automotive applications. This component features a differential input type and provides a LIN output, facilitating robust communication in complex vehicle architectures. With a supply current of 7 mA and an operating temperature range of -40°C to 150°C, the ADA4558WHCPZ-R7 is engineered for reliability in extreme conditions. Its 20-LFCSP (4x4) package with exposed pad ensures efficient thermal management and ease of surface mounting. Qualified to AEC-Q100 standards, this device is suitable for use in automotive sensing systems, including pressure monitoring and other vehicle control applications requiring precise signal conditioning and reliable data transmission.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Output Type | LIN |
| Mounting Type | Surface Mount |
| Type | Sensor Conditioner |
| Operating Temperature | -40°C ~ 150°C |
| Input Type | Differential |
| Supplier Device Package | 20-LFCSP (4x4) |
| Grade | Automotive |
| Current - Supply | 7 mA |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
