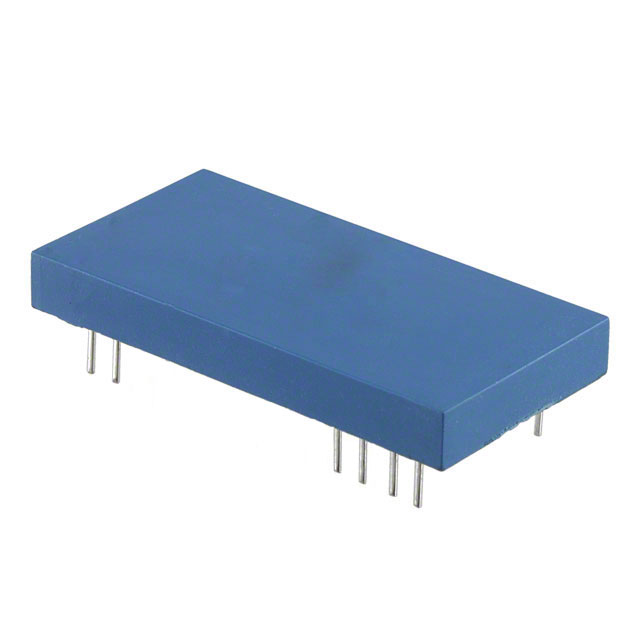

1B51BN
IC THERMCPL SGNL COND ISOL 38DIPManufacturer: Analog Devices Inc.
Categories: Sensor and Detector Interfaces
Quality Control: Learn More
Analog Devices Inc. 1B51BN is a signal conditioner designed for thermocouple inputs. This electronic component features isolated voltage output and is housed in a 38-DIP (0.800", 20.32mm) package, with 12 leads. The device operates within an ambient temperature range of -40°C to 85°C and requires a supply current of 12 mA. Its input type is voltage, and the output type is also voltage, facilitating straightforward integration into system designs. The 1B51BN is suitable for applications requiring precise temperature measurement and signal isolation, commonly found in industrial automation, test and measurement equipment, and medical instrumentation. This component is supplied in a tray.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 38-DIP (0.800"", 20.32mm), 12 Leads |
| Output Type | Voltage |
| Mounting Type | Through Hole |
| Type | Signal Conditioner |
| Operating Temperature | -40°C ~ 85°C |
| Input Type | Voltage |
| Supplier Device Package | 12-PDIP |
| Current - Supply | 12 mA |
| Programmable | Not Verified |
