AD736JR
IC RMS TO DC CONVERTER 8SOICManufacturer: Analog Devices Inc.
Categories: RMS to DC Converters
Quality Control: Learn More

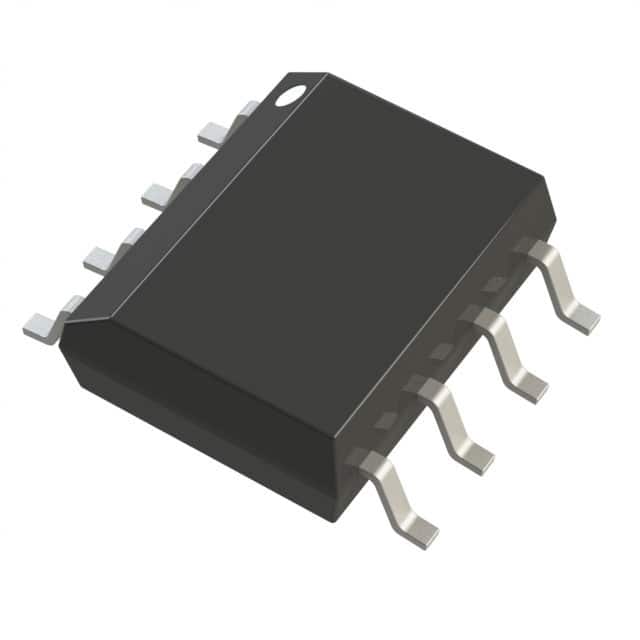

Analog Devices Inc. AD736JR RMS to DC Converter, packaged in an 8-SOIC surface mount configuration. This component offers precise conversion of AC signals to a DC voltage proportional to the true RMS value, operating with a typical supply current of 160 µA. The device supports a wide range of supply voltages, from 2.8V to ±16.5V, ensuring flexibility in system design. Its robust performance makes it suitable for applications in instrumentation, data acquisition, and signal processing, where accurate measurement of complex waveforms is critical. The 8-SOIC package, with its standard dimensions of 0.154" (3.90mm) width, facilitates straightforward integration into printed circuit board assemblies.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Voltage - Supply | 2.8V, -3.2V ~ ±16.5V |
| Supplier Device Package | 8-SOIC |
| Current - Supply | 160 µA |
