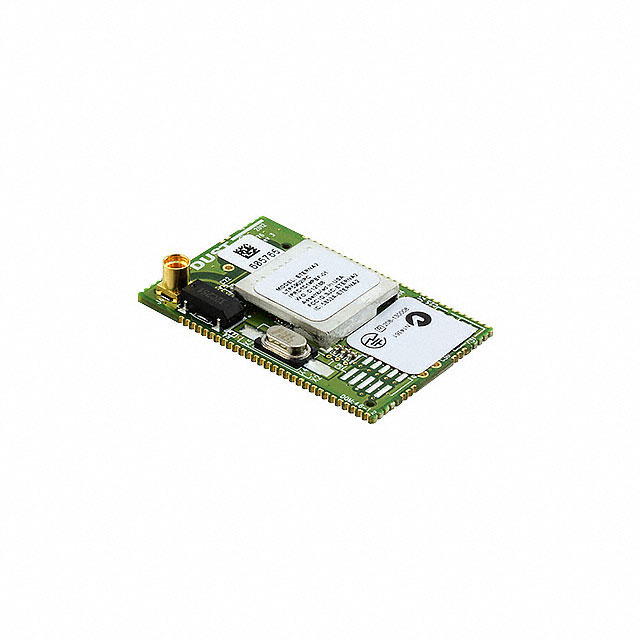

LTP5902IPC-IPRC1C1#PBF
RF TXRX MODULE 802.15.4MMCX SMDManufacturer: Analog Devices Inc.
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Analog Devices Inc. SmartMesh® IP LTP5902IPC-IPRC1C1-PBF is a 2.4GHz 802.15.4 RF transceiver module supporting SmartMesh IP™ and 6LoWPAN protocols. This surface mount module features an MMCX connector for antenna integration, delivering a data rate of 250kbps. It operates within a 2.4GHz frequency band with a transmit power of up to 8dBm and a receive sensitivity of -95dBm. The integrated memory includes 512kB Flash and 72kB SRAM. Current consumption is rated at 4.5mA for receiving and 5.4mA to 9.7mA for transmitting. The module supports SPI and UART serial interfaces and operates across an industrial temperature range of -40°C to 85°C with a supply voltage range of 2.1V to 3.76V. This component is commonly deployed in industrial automation, smart metering, and building automation applications.
Additional Information
Series: SmartMesh® IPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 66-SMD Module |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 512kB Flash, 72kB SRAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.1V ~ 3.76V |
| Power - Output | 8dBm |
| Data Rate | 250kbps |
| Protocol | Smartmesh IP™, 6LoWPAN |
| Current - Receiving | 4.5mA |
| Current - Transmitting | 5.4mA ~ 9.7mA |
| Antenna Type | Antenna Not Included, MMCX |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
