LTP5902IPC-IPRA1C1#PBF
RF TXRX MODULE 802.15.4MMCX SMDManufacturer: Analog Devices Inc.
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Analog Devices Inc. SmartMesh® IP LTP5902IPC-IPRA1C1-PBF is an 802.15.4 2.4GHz RF transceiver module designed for demanding wireless mesh networking applications. This surface mount module, featuring an MMCX connector for antenna attachment, supports the SmartMesh IP™ and 6LoWPAN protocols, delivering a robust and scalable wireless solution. It offers a 250kbps data rate, with transmit power up to 8dBm and a receive sensitivity of -95dBm. Current consumption is minimal, with 4.5mA in receive mode and 5.4mA to 9.7mA during transmission. The module integrates 512kB of Flash and 72kB of SRAM memory, enabling complex network operations. Serial communication is facilitated via SPI and UART interfaces. Operating across a temperature range of -40°C to 85°C and powered by a 2.1V to 3.76V supply, the LTP5902IPC-IPRA1C1-PBF is well-suited for industrial automation, smart building control, and asset tracking systems.
Additional Information
Series: SmartMesh® IPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 66-SMD Module |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 512kB Flash, 72kB SRAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.1V ~ 3.76V |
| Power - Output | 8dBm |
| Data Rate | 250kbps |
| Protocol | Smartmesh IP™, 6LoWPAN |
| Current - Receiving | 4.5mA |
| Current - Transmitting | 5.4mA ~ 9.7mA |
| Antenna Type | Antenna Not Included, MMCX |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

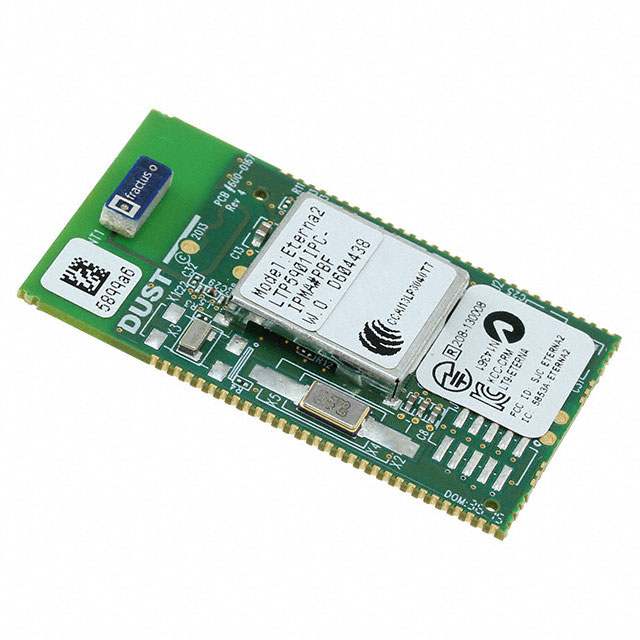

LTP5901IPC-IPMA#PBF
