LTP5900IPC-WHMA#PBF
RF TXRX MOD 802.15.4MMCX THManufacturer: Analog Devices Inc.
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More

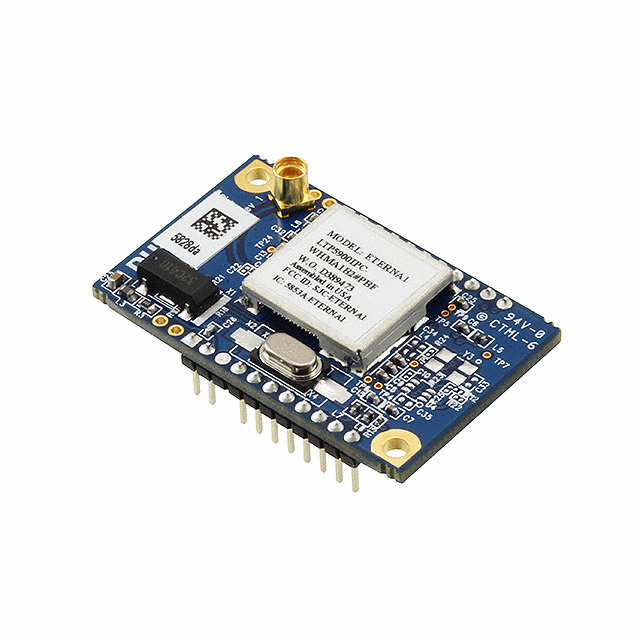

Analog Devices Inc. LTP5900IPC-WHMA-PBF is an 802.15.4 WirelessHART transceiver module operating in the 2.4GHz band. This through-hole mounted module, part of the Dust Networks®, SmartMesh®, and WirelessHART series, features an MMCX connector for antenna integration. It supports a data rate of 250kbps with DSSS modulation. Receive current is 4.5mA, while transmit current ranges from 5.4mA to 9.7mA. Output power is 8dBm, and receiver sensitivity is -95dBm. Interface options include SPI and UART. The module operates across a temperature range of -40°C to 85°C and requires a supply voltage between 2.75V and 3.76V. This component is commonly utilized in industrial automation, smart grid, and building automation applications.
Additional Information
Series: Dust Networks®, SmartMesh®, WirelessHARTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 22-DIP Module |
| Sensitivity | -95dBm |
| Mounting Type | Through Hole |
| Frequency | 2.4GHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.75V ~ 3.76V |
| Power - Output | 8dBm |
| Data Rate | 250kbps |
| Protocol | WirelessHART |
| Current - Receiving | 4.5mA |
| Current - Transmitting | 5.4mA ~ 9.7mA |
| Antenna Type | Antenna Not Included, MMCX |
| Utilized IC / Part | - |
| Modulation | DSSS |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
