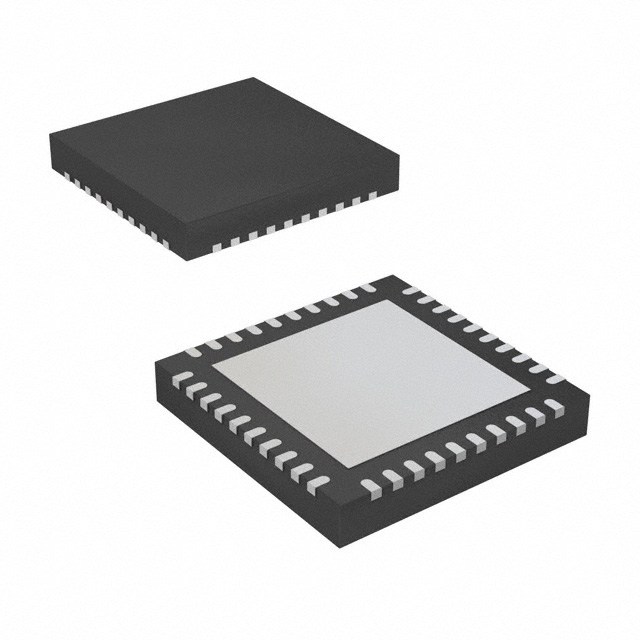

ADF7030-1BCPZN
IC RF TXRX+MCU 802.15.4 40LFCSPManufacturer: Analog Devices Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
IC RF TxRx + MCU 802.15.4 169MHz, 426MHz ~ 470MHz, 863MHz ~ 960MHz 40-WFQFN Exposed Pad, CSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-WFQFN Exposed Pad, CSP |
| Sensitivity | -134dBm |
| Mounting Type | Surface Mount |
| Frequency | 169MHz, 426MHz ~ 470MHz, 863MHz ~ 960MHz |
| Memory Size | - |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.2V ~ 3.6V |
| Power - Output | 17dBm |
| Protocol | - |
| Current - Receiving | 25mA |
| Data Rate (Max) | 360kbps |
| Current - Transmitting | 65mA |
| Supplier Device Package | 40-LFCSP (6x6) |
| GPIO | 8 |
| Modulation | 2FSK, 2GFSK, 4FSK, 4GFSK |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
