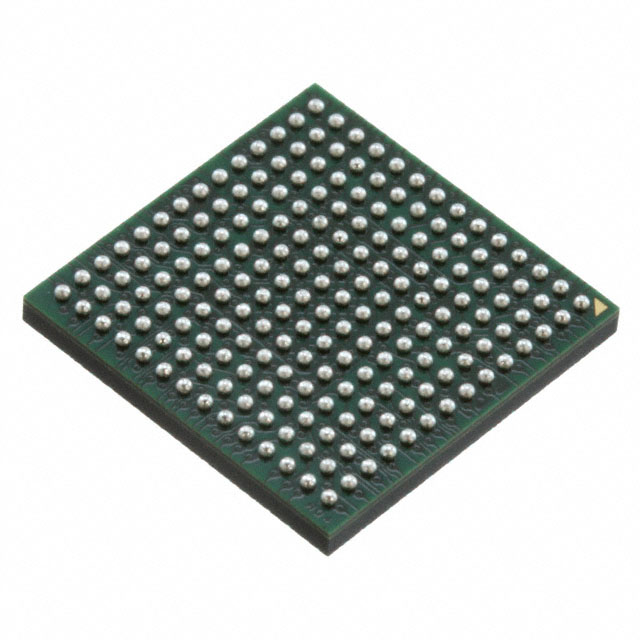

AD9371BBCZ-REEL
IC RF TXRX 196CSPBGAManufacturer: Analog Devices Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
Analog Devices Inc. AD9371BBCZ-REEL is a high-performance, highly integrated RF transceiver IC designed for demanding applications across wireless communications, test and measurement, and radar systems. This device operates across a broad frequency range of 300MHz to 6GHz, facilitating flexible system design for diverse global standards. The AD9371BBCZ-REEL features a TxRx Only architecture, enabling efficient signal transmission and reception. It supports an extensive range of modulation schemes and offers configurable digital filters. Key specifications include a 196-CSPBGA (12x12) package for surface mounting, SPI serial interfaces for control, and an operating temperature range of -40°C to 85°C. The device is supplied in a tape and reel for automated assembly, with a typical supply voltage of 3.3V. Its capabilities make it suitable for advanced base stations, software-defined radio (SDR) platforms, and electronic warfare systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 196-LFBGA, CSPBGA |
| Sensitivity | - |
| Mounting Type | Surface Mount |
| Frequency | 300MHz ~ 6GHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V |
| Power - Output | 7dBm |
| Protocol | - |
| Current - Receiving | 1A |
| Data Rate (Max) | - |
| Current - Transmitting | 1.1A |
| Supplier Device Package | 196-CSPBGA (12x12) |
| GPIO | 19 |
| Modulation | - |
| RF Family/Standard | - |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
