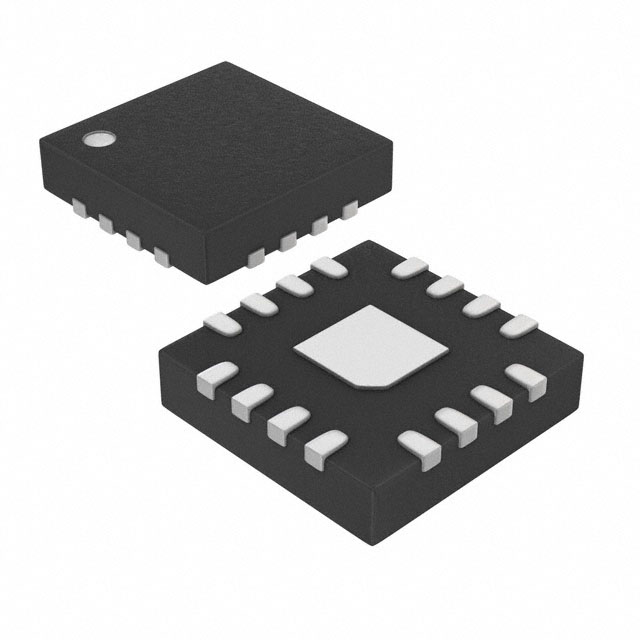

HMC849ALP4CETR
IC RF SWITCH SPDT 6GHZ 16QFNManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
The Analog Devices Inc. HMC849ALP4CETR is a high-performance SPDT RF switch designed for general-purpose applications. Operating from DC to 6 GHz, this component offers a typical insertion loss of 1 dB and excellent isolation of 56 dB at 4 GHz. Key performance metrics include an IIP3 of 52 dBm and a P1dB of 33 dBm, ensuring robust signal handling. The HMC849ALP4CETR features a 50 Ohm impedance characteristic and is supplied in a compact 16-QFN (4x4) exposed pad package, suitable for surface mounting. This device is engineered for demanding applications across telecommunications, test and measurement, and defense industries, where precise RF signal routing is critical. The operating temperature range is from -40°C to 85°C, and it is provided in tape and reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| RF Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5V |
| Insertion Loss | 1dB |
| Frequency Range | 0Hz ~ 6GHz |
| Topology | - |
| P1dB | 33dBm |
| Test Frequency | 4GHz |
| Isolation | 56dB |
| Supplier Device Package | 16-QFN (4x4) |
| IIP3 | 52dBm |
