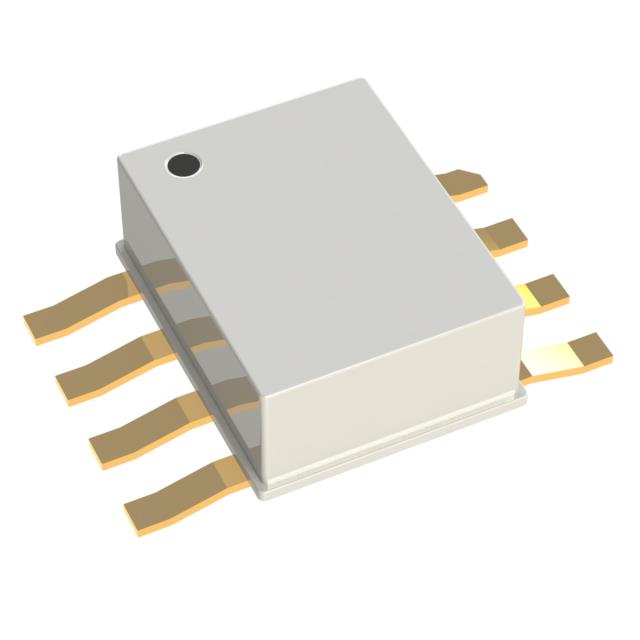

HMC347C8TR
IC RF SWITCH SPDT 8GHZ 8CSMDManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC347C8TR is a high-performance SPDT RF switch designed for general-purpose applications. This component offers a broad frequency range from 0 Hz to 8 GHz, with key performance metrics specified at 6 GHz. It features a low insertion loss of 2 dB and excellent isolation of 40 dB, ensuring signal integrity. The device boasts an IIP3 of 43 dBm and a P1dB of 23 dBm, indicating strong linearity and power handling capabilities.
Operating at a nominal supply voltage of 5V and a 50 Ohm impedance, the HMC347C8TR is housed in an 8-CSMD package, suitable for surface mounting. Its operating temperature range is from -40°C to 85°C. This RF switch is utilized across various industries requiring robust signal switching, including telecommunications, defense, and aerospace. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-CSOIC (0.154"", 3.90mm Width) Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| RF Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Insertion Loss | 2dB |
| Frequency Range | 0Hz ~ 8GHz |
| Topology | - |
| P1dB | 23dBm |
| Test Frequency | 6GHz |
| Isolation | 40dB |
| Supplier Device Package | 8-CSMD |
| IIP3 | 43dBm |
