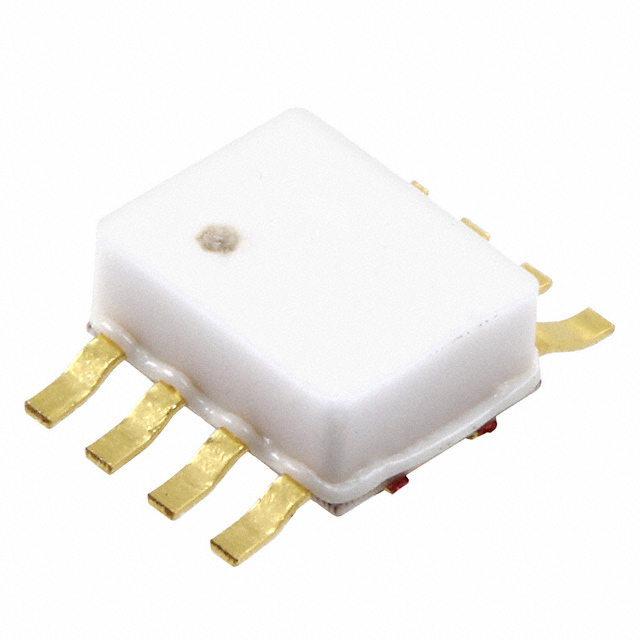

HMC347C8
IC RF SWITCH SPDT 8GHZ 8CSMDManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC347C8 is a Single Pole Double Throw (SPDT) RF switch IC designed for general-purpose applications across a frequency range of 0 Hz to 8 GHz. This component features a low insertion loss of 2 dB and high isolation of 40 dB at 6 GHz. With an IIP3 of 43 dBm and a P1dB of 23 dBm, it provides excellent linearity. The HMC347C8 operates at a 5V supply voltage and has a characteristic impedance of 50 Ohms. It is housed in an 8-CSMD surface-mount package, suitable for demanding operating temperatures from -40°C to 85°C. Applications span wireless infrastructure, military and aerospace, and test and measurement equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 8-CSOIC (0.154"", 3.90mm Width) Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| RF Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Insertion Loss | 2dB |
| Frequency Range | 0Hz ~ 8GHz |
| Topology | - |
| P1dB | 23dBm |
| Test Frequency | 6GHz |
| Isolation | 40dB |
| Supplier Device Package | 8-CSMD |
| IIP3 | 43dBm |
