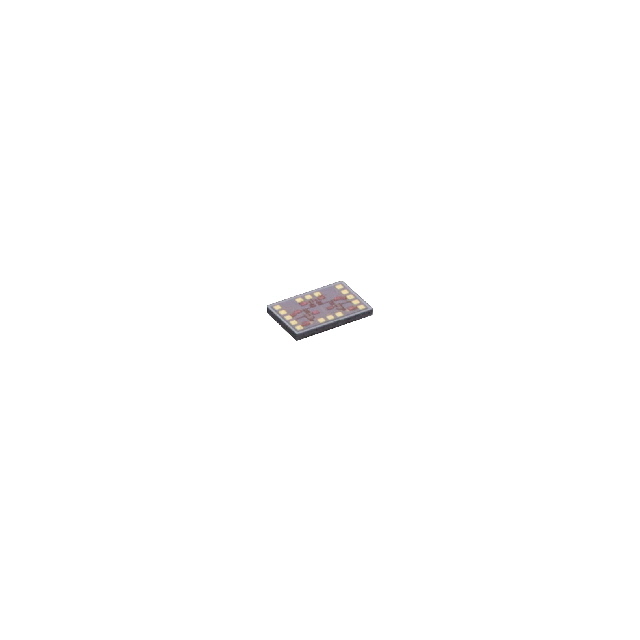

HMC347B
IC RF SWITCH SPDT 20GHZ DIEManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
RF Switch IC VSAT SPDT 50Ohm Die
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | Die |
| Impedance | 50Ohm |
| Circuit | SPDT |
| RF Type | VSAT |
| Operating Temperature | -55°C ~ 85°C |
| Voltage - Supply | - |
| Insertion Loss | 1.7dB |
| Frequency Range | 0.1Hz ~ 20GHz |
| Topology | Absorptive |
| P1dB | 23dBm |
| Test Frequency | 20GHz |
| Isolation | 45dB |
| Supplier Device Package | Die |
| IIP3 | 41dBm |
Request a Quote
