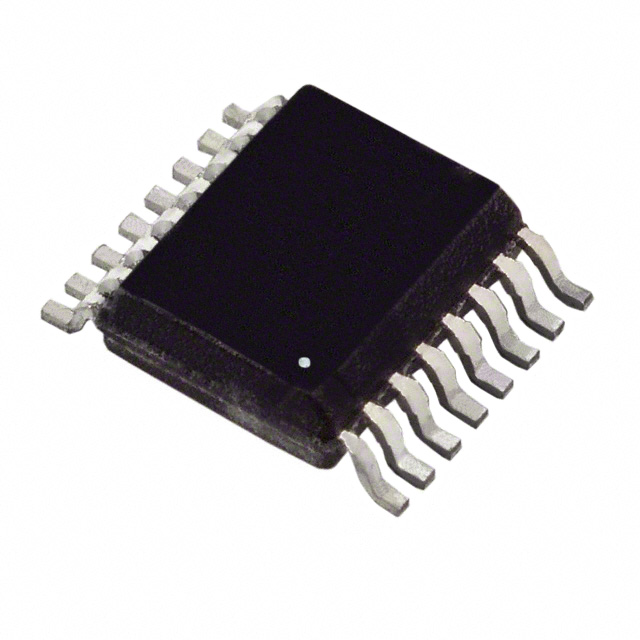

HMC245AQS16TR
IC RF SWITCH SP3T 3.5GHZ 16QSOPManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC245AQS16TR is a Silicon Germanium (SiGe) RF switch IC featuring a Single Pole Triple Throw (SP3T) configuration. This absorptive switch operates across a frequency range of 0 Hz to 3.5 GHz, making it suitable for CATV applications. Key specifications include an insertion loss of 0.8 dB and isolation of 36 dB at 2.5 GHz. The component boasts an IIP3 of 48 dBm and a P1dB of 29 dBm, ensuring robust performance in demanding RF environments. Designed for surface mounting, the HMC245AQS16TR is housed in a 16-QSOP package with a 50 Ohm impedance. It operates reliably within an ambient temperature range of -40°C to 85°C and requires a 5V supply voltage. This device is commonly utilized in broadband communication systems and cable television infrastructure.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SSOP (0.154"", 3.90mm Width) |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP3T |
| RF Type | CATV |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Insertion Loss | 0.8dB |
| Frequency Range | 0Hz ~ 3.5GHz |
| Topology | Absorptive |
| P1dB | 29dBm |
| Test Frequency | 2.5GHz |
| Isolation | 36dB |
| Supplier Device Package | 16-QSOP |
| IIP3 | 48dBm |
