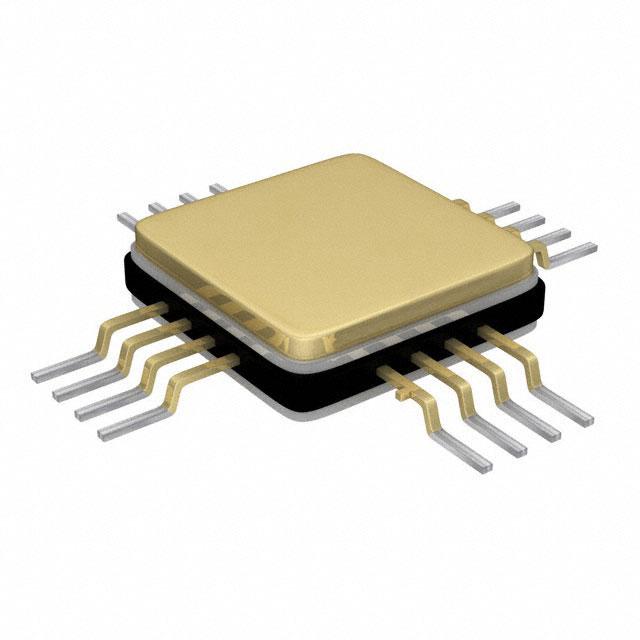

HMC244AG16
IC RF SWITCH SP4T 4GHZ 16SMTManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC244AG16 is a Silicon Germanium (SiGe) RF SP4T switch designed for broadband applications up to 4 GHz. This surface mount component offers a 50 Ohm impedance and exhibits low insertion loss of 1.2 dB at 4 GHz, with excellent isolation of 28 dB. Key RF performance metrics include an IIP3 of 45 dBm and a P1dB of 28 dBm, ensuring robust signal handling. The HMC244AG16 operates from a 5V supply and is specified for an extended temperature range of -40°C to 85°C. Its 16-SMT (5.84x5.84) package is suitable for high-volume manufacturing. This RF switch is commonly employed in radar systems and other high-frequency communications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 16-LQFP |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP4T |
| RF Type | Radar |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Insertion Loss | 1.2dB |
| Frequency Range | 0Hz ~ 4GHz |
| Topology | - |
| P1dB | 28dbm |
| Test Frequency | 4GHz |
| Isolation | 28dB |
| Supplier Device Package | 16-SMT (5.84x5.84) |
| IIP3 | 45dBm |
