HMC241LP3
IC RF SWITCH SP4T 4GHZ 16QFNManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC241LP3 is a high-performance SP4T RF switch designed for general-purpose applications. This component operates across a frequency range of 0 Hz to 4 GHz, offering an insertion loss of 1.2 dB at 4 GHz. With excellent isolation of 30 dB at 4 GHz, it ensures signal integrity in demanding RF signal routing. The HMC241LP3 features an IIP3 of 45 dBm and a P1dB of 26 dBm, making it suitable for applications requiring robust linearity. Its 50 Ohm impedance and absorptive topology contribute to efficient power handling. This surface mount device is supplied in a compact 16-QFN (3x3) package, ideal for space-constrained designs in industries such as telecommunications, radar, and test and measurement equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |

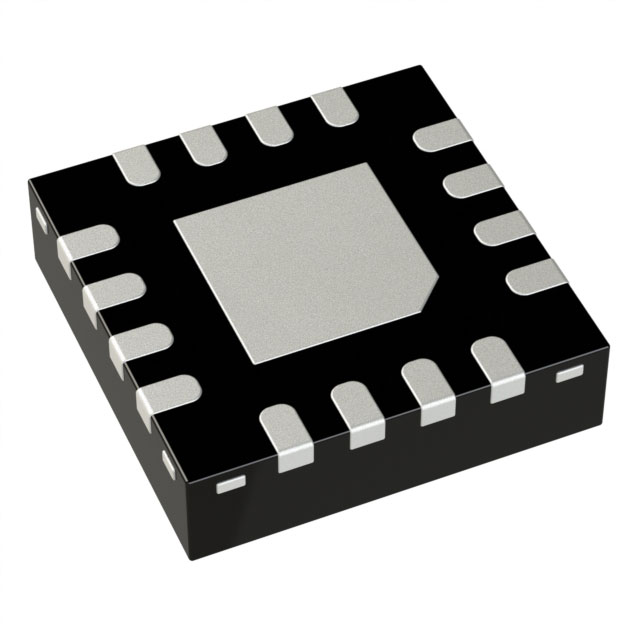

| Package / Case | 16-VFQFN Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP4T |
| RF Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | - |
| Insertion Loss | 1.2dB |
| Frequency Range | 0Hz ~ 4GHz |
| Topology | Absorptive |
| P1dB | 26dBm |
| Test Frequency | 4GHz |
| Isolation | 30dB |
| Supplier Device Package | 16-QFN (3x3) |
| IIP3 | 45dBm (min) |
