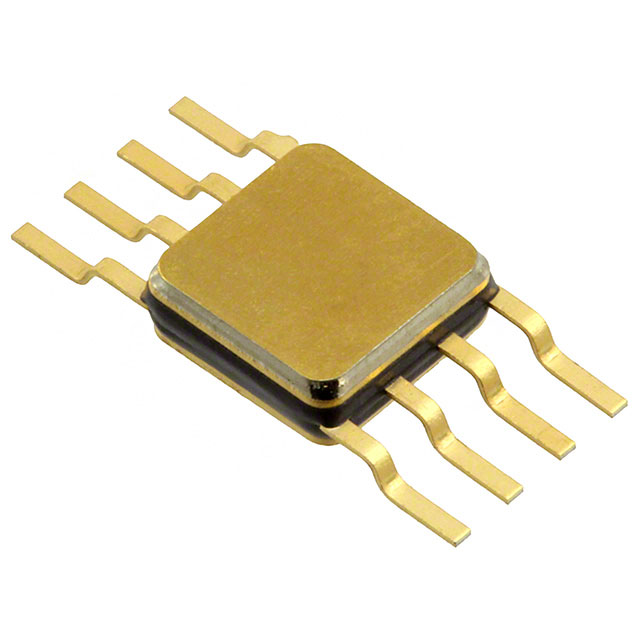

HMC232G8
IC RF SWITCH SPDT 6GHZ 8SMTManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC232G8 is a non-reflective SPDT RF switch designed for applications requiring high-performance RF signal routing. This component operates from DC to 6 GHz, offering a flexible solution for a wide range of frequency bands. With a typical insertion loss of 1.5 dB at 4 GHz and excellent isolation of 38 dB at the same frequency, the HMC232G8 ensures minimal signal degradation and separation. The switch features a robust IP3 of 46 dBm and a P1dB of 27 dBm, providing linearity crucial for demanding RF systems. Its 50-ohm impedance characteristic is standard for RF applications. The HMC232G8 is housed in an 8-SMT package, suitable for surface mount assembly. This RF switch finds utility in VSAT systems and other advanced radio frequency applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 8-SOIC (0.173"", 4.40mm Width) |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| RF Type | VSAT |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | - |
| Insertion Loss | 1.5dB |
| Frequency Range | 0Hz ~ 6GHz |
| Topology | Absorptive |
| P1dB | 27dBm |
| Test Frequency | 4GHz |
| Isolation | 38dB |
| Supplier Device Package | 8-SMT |
| IIP3 | 46dBm |
