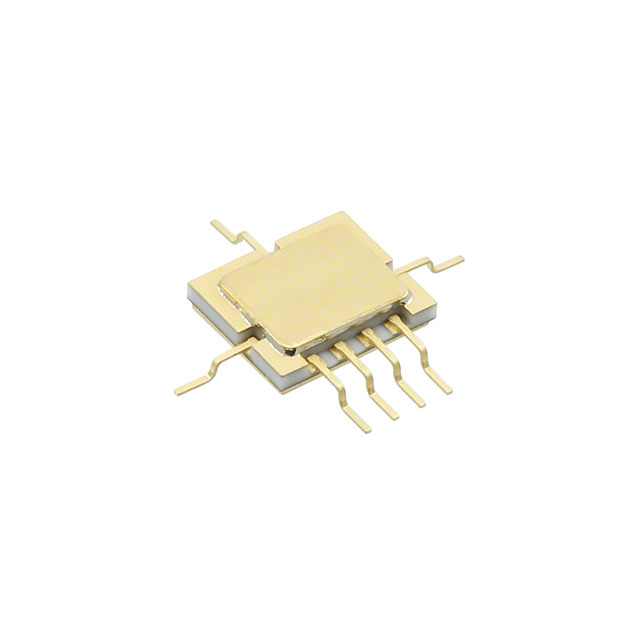

HMC232G7
IC RF SWITCH SPDT 6GHZ 7SMDManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC232G7 is a broadband SPDT RF switch designed for high-frequency applications. This absorptive switch operates across a frequency range of 0 Hz to 6 GHz, offering excellent performance for VSAT and other demanding RF systems. With a typical insertion loss of 1.4 dB and isolation of 46 dB at 4 GHz, the HMC232G7 ensures signal integrity. It features an IIP3 of 49 dBm and a P1dB of 27 dBm, suitable for applications requiring good linearity. The device is housed in a 7-SMD package with gull wing leads, designed for surface-mount assembly. Operating temperature range is -40°C to 85°C, and it maintains a 50 Ohm impedance. This component is typically utilized in satellite communications, defense, and general-purpose RF infrastructure.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 7-SMD, Gull Wing |
| Impedance | 50Ohm |
| Circuit | SPDT |
| RF Type | VSAT |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | - |
| Insertion Loss | 1.4dB |
| Frequency Range | 0Hz ~ 6GHz |
| Topology | Absorptive |
| P1dB | 27dBm |
| Test Frequency | 4GHz |
| Isolation | 46dB |
| Supplier Device Package | 7-SMD |
| IIP3 | 49dBm |
