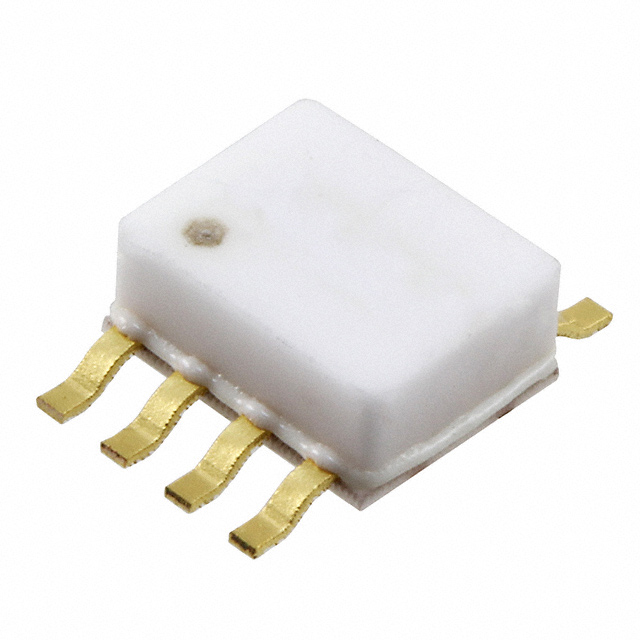

HMC232C8TR
IC RF SWITCH SPDT 8GHZ 8CSMDManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC232C8TR is a general-purpose SPDT RF switch designed for operation from DC to 8 GHz. This component offers a 1.6 dB typical insertion loss and 43 dB isolation at 6 GHz. With an IIP3 of 46 dBm and P1dB of 26 dBm, it provides robust performance in demanding RF applications. The HMC232C8TR features a 50 Ohm impedance and operates from a 5V supply within an -40°C to 85°C temperature range. Its 8-CSMD package, supplied on tape and reel, is suitable for automated assembly processes in industries such as telecommunications, test and measurement, and defense.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing Exposed Pad |
| Impedance | 50Ohm |
| Circuit | SPDT |
| RF Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Insertion Loss | 1.6dB |
| Frequency Range | 0Hz ~ 8GHz |
| Topology | - |
| P1dB | 26dBm |
| Test Frequency | 6GHz |
| Isolation | 43dB |
| Supplier Device Package | 8-CSMD |
| IIP3 | 46dBm |
