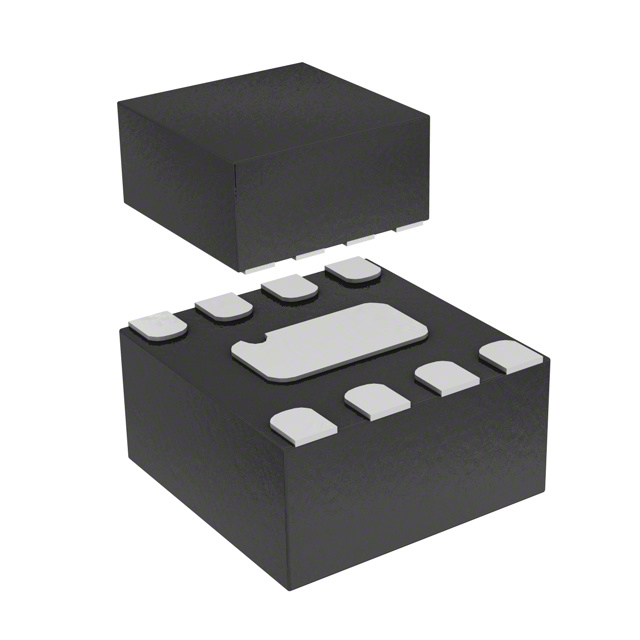

HMC1055LP2CETR
IC RF SWITCH SPST 4GHZ 8LFCSPManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC1055LP2CETR is a Single Pole Single Throw (SPST) RF switch designed for high-performance applications. Operating from 0 Hz to 4 GHz, this device offers excellent RF performance with an insertion loss of 1.8 dB and isolation of 28 dB at 4 GHz. Its high linearity is demonstrated by an IIP3 of 63 dBm. The HMC1055LP2CETR is suitable for WiMAX and WLAN systems, among other RF front-end designs. It features a 50-ohm impedance and a reflective topology, packaged in an 8-LFCSP (2x2) for surface mounting. This component operates within a supply voltage range of 1.2V to 5V and has an operating temperature range of -40°C to 85°C. The HMC1055LP2CETR is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFDFN Exposed Pad, CSP |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPST |
| RF Type | WiMax, WLAN |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.2V ~ 5V |
| Insertion Loss | 1.8dB |
| Frequency Range | 0Hz ~ 4GHz |
| Topology | Reflective |
| P1dB | - |
| Test Frequency | 4GHz |
| Isolation | 28dB |
| Supplier Device Package | 8-LFCSP (2x2) |
| IIP3 | 63dBm |
