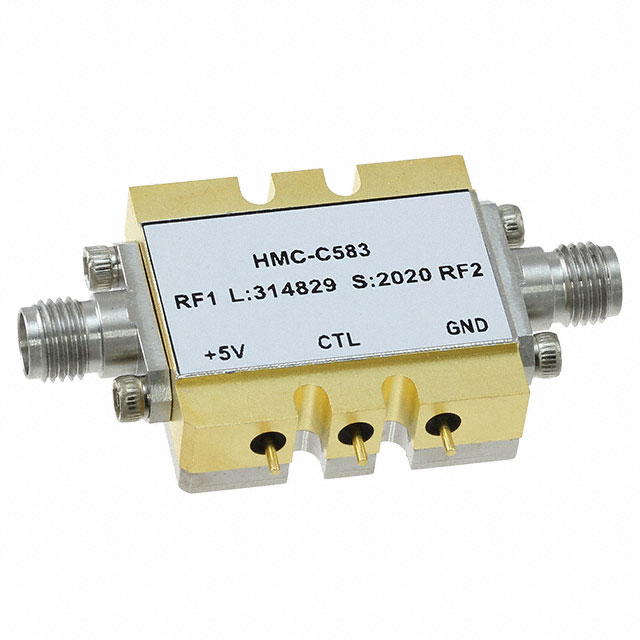

HMC-C583
IC RF SWITCH SPST 40GHZ DIEManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. HMC-C583 is an RF switch IC featuring a Single Pole, Single Throw (SPST) topology. This die-level component offers exceptional performance across a wide frequency range from 100 MHz to 40 GHz, making it suitable for demanding applications in wireless infrastructure, radar systems, and electronic warfare. The HMC-C583 boasts an impressive IIP3 of 40 dBm and operates with a typical supply voltage of 3.5V. Its absorptive design ensures minimal reflections, contributing to system stability and signal integrity. The operating temperature range of -55°C to 85°C underscores its robustness in harsh environments. This component is delivered in box packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Package / Case | Die |
| Impedance | - |
| Circuit | SPST |
| RF Type | - |
| Operating Temperature | -55°C ~ 85°C |
| Voltage - Supply | 3.5V |
| Frequency Range | 100MHz ~ 40GHz |
| Topology | Absorptive |
| P1dB | - |
| Supplier Device Package | Die |
| IIP3 | 40dBm |
