HMC-C058
IC RF SWITCH SPDT 18GHZManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More

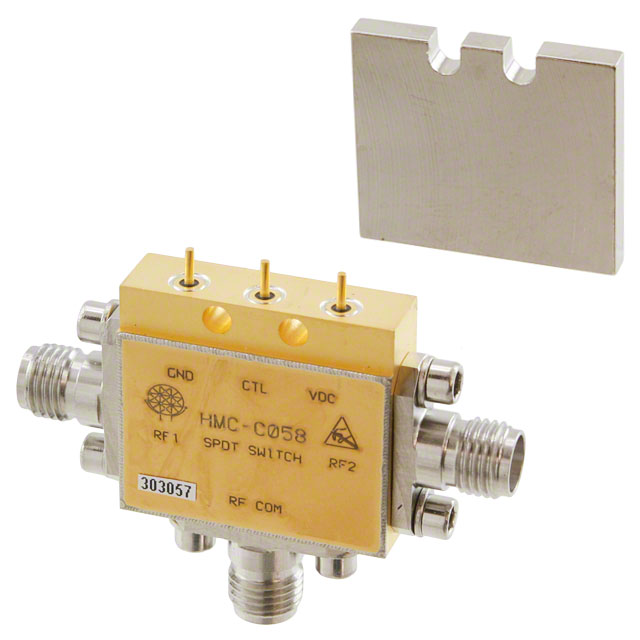

Analog Devices Inc. HMC-C058 is a Single Pole Double Throw (SPDT) RF switch designed for general-purpose applications. This component operates across a frequency range of 0Hz to 18GHz, with key performance characteristics including an insertion loss of 3dB and isolation of 55dB at 18GHz. The device exhibits an IIP3 of 46dBm and a P1dB of 27dBm. It is built with a 50 Ohm impedance and features an absorptive topology. The HMC-C058 operates from a 5V supply and is suitable for demanding environments with an operating temperature range of -55°C to 85°C. This RF switch is commonly found in defense, aerospace, and high-frequency test and measurement systems. The component is supplied in Bulk packaging with SMA connectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Module, SMA Connectors |
| Impedance | 50Ohm |
| Circuit | SPDT |
| RF Type | General Purpose |
| Operating Temperature | -55°C ~ 85°C |
| Voltage - Supply | 5V |
| Insertion Loss | 3dB |
| Frequency Range | 0Hz ~ 18GHz |
| Topology | Absorptive |
| P1dB | 27dBm |
| Test Frequency | 18GHz |
| Isolation | 55dB |
| Supplier Device Package | - |
| IIP3 | 46dBm |
