HMC-C019
IC RF SWITCH SPST 20GHZManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More

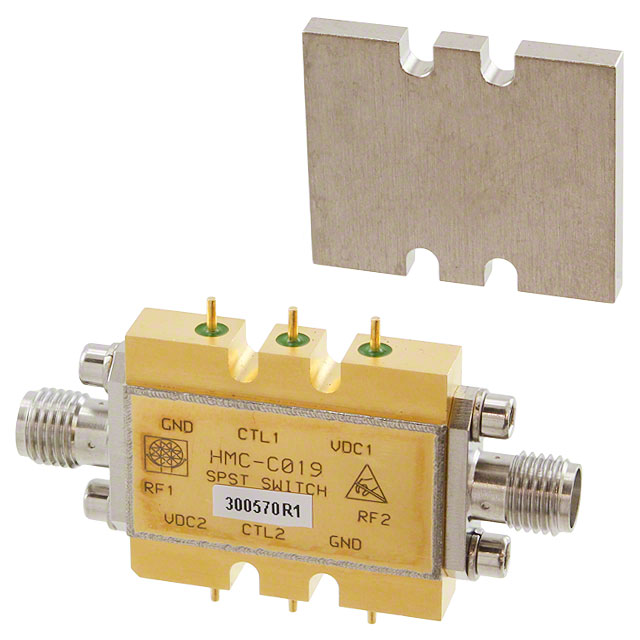

Analog Devices Inc. HMC-C019 is a single-pole, single-throw (SPST) RF switch designed for general-purpose applications. This module, featuring SMA connectors, operates across a frequency range of 0 Hz to 20 GHz. It offers a typical insertion loss of 6 dB and provides 65 dB of isolation at 20 GHz. The device exhibits an IIP3 of 43 dBm and a P1dB of 23 dBm, with a characteristic impedance of 50 Ohms. The HMC-C019 is constructed with an absorptive topology and operates at a supply voltage of 5V. Its operating temperature range is specified from -55°C to 85°C. This component is utilized in various demanding applications, including aerospace, defense, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Module, SMA Connectors |
| Impedance | 50Ohm |
| Circuit | SPST |
| RF Type | General Purpose |
| Operating Temperature | -55°C ~ 85°C |
| Voltage - Supply | 5V |
| Insertion Loss | 6dB |
| Frequency Range | 0Hz ~ 20GHz |
| Topology | Absorptive |
| P1dB | 23dBm |
| Test Frequency | 20GHz |
| Isolation | 65dB |
| Supplier Device Package | - |
| IIP3 | 43dBm |
