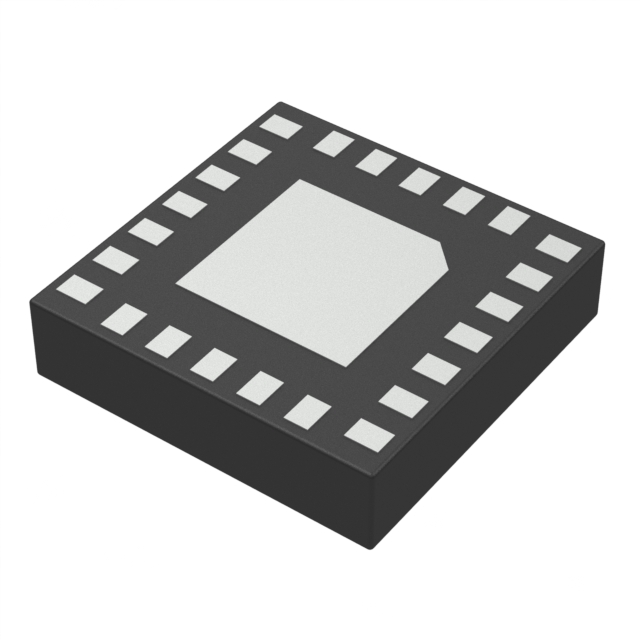

ADRF5054BCCZN
SILICON SP4T, REFLECTIVE, 60 GHZManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
RF Switch IC 5G, VSAT SP4T 50Ohm 24-LGA (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | DC Blocked |
| Packaging | Strip |
| Package / Case | 24-VFLGA Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP4T |
| RF Type | 5G, VSAT |
| Operating Temperature | -40°C ~ 105°C (TC) |
| Voltage - Supply | 3.15V ~ 3.45V |
| Insertion Loss | 3.2dB |
| Frequency Range | 1GHz ~ 60GHz |
| Topology | Reflective |
| P1dB | - |
| Test Frequency | 60GHz |
| Isolation | 28dB |
| Supplier Device Package | 24-LGA (3x3) |
| IIP3 | 47dBm |
Request a Quote
