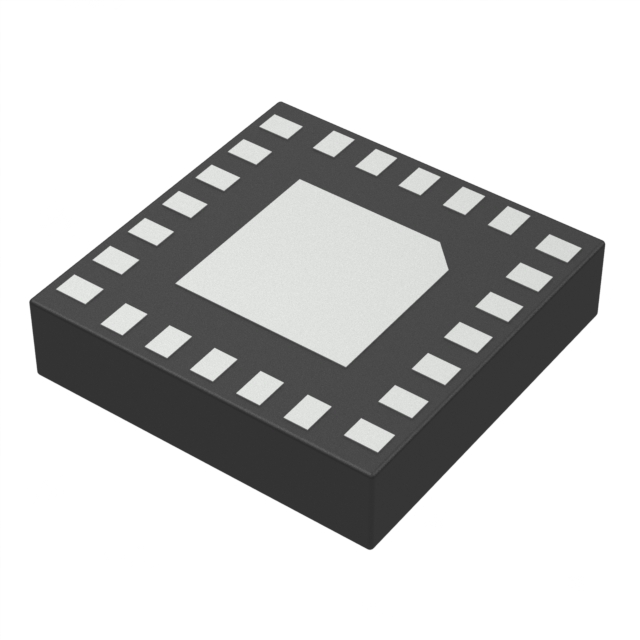

ADRF5048BCCZN-R7
100MHZ - 45GHZ, SP4T, 30 DBM, REManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
RF Switch IC 5G, Cellular, Radar, VSAT SP4T 50Ohm 24-LGA (3x3)
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | DC Blocked |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFLGA Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP4T |
| RF Type | 5G, Cellular, Radar, VSAT |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3.15V ~ 3.45V |
| Insertion Loss | 4dB |
| Frequency Range | 100MHz ~ 45GHz |
| Topology | Absorptive |
| P1dB | - |
| Test Frequency | 45GHz |
| Isolation | 35dB |
| Supplier Device Package | 24-LGA (3x3) |
| IIP3 | 52dBm |
