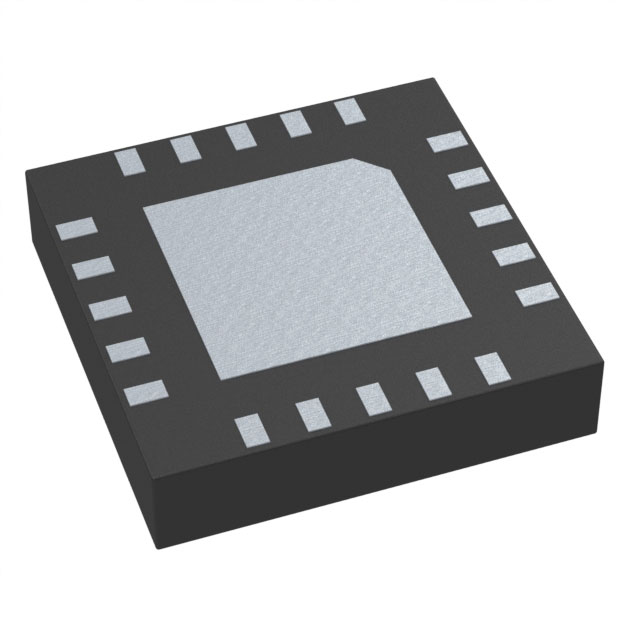

ADRF5047BCCZN-R7
IC RF SWITCH SP4T 44GHZ 20LGAManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
RF Switch IC VSAT SP4T 50Ohm 20-LGA (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFLGA Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP4T |
| RF Type | VSAT |
| Operating Temperature | -40°C ~ 105°C (TC) |
| Voltage - Supply | 3.15V ~ 3.45V |
| Insertion Loss | 2.7dB |
| Frequency Range | 9kHz ~ 44GHz |
| Topology | Reflective |
| P1dB | - |
| Test Frequency | 44GHz |
| Isolation | 31dB |
| Supplier Device Package | 20-LGA (3x3) |
| IIP3 | 50dBm |
Request a Quote
