ADRF5045BCCZN
IC RF SWITCH SP4T 30GHZ 24LGAManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
RF Switch IC General Purpose SP4T 50Ohm 24-LGA (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |

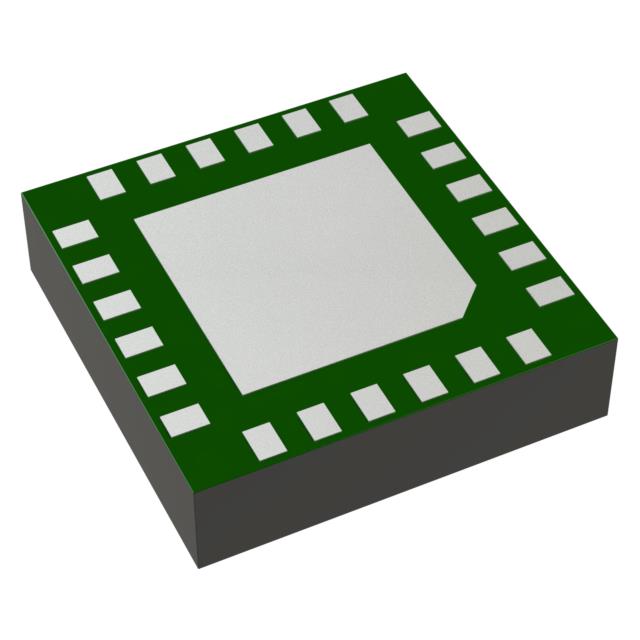

| Package / Case | 24-VFLGA Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP4T |
| RF Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Voltage - Supply | 3.15V ~ 3.45V |
| Insertion Loss | 2.4dB |
| Frequency Range | 9kHz ~ 30GHz |
| Topology | Absorptive |
| P1dB | 28dbm |
| Test Frequency | 30GHz |
| Isolation | 45dB |
| Supplier Device Package | 24-LGA (4x4) |
| IIP3 | 50dBm |
Request a Quote
