ADGM1144BCCZ-RL7

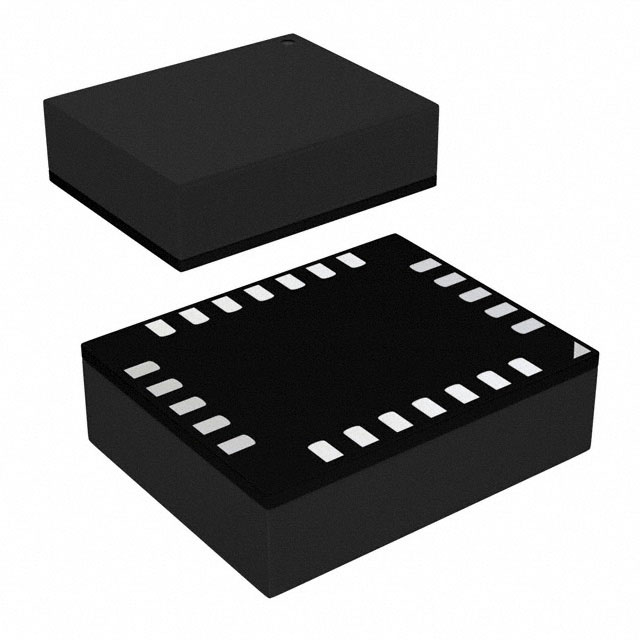

IC RF SWITCH SP4T 18GHZ 24LGAManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. SP4T RF Switch, part number ADGM1144BCCZ-RL7, offers a versatile solution for high-frequency applications. This absorptive switch operates across a frequency range of DC to 18GHz, with typical insertion loss of -1.7dB and isolation of -13dB at 16GHz. Featuring a 24-LGA (5x4) package with an exposed pad for efficient thermal management, this component is designed for surface mounting. The ADGM1144BCCZ-RL7 supports a supply voltage range of 3V to 3.6V and boasts an IIP3 of 73dBm. Its robust construction and performance characteristics make it suitable for use in telecommunications, radar systems, and test and measurement equipment. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TFLGA Exposed Pad |
| Impedance | - |
| Mounting Type | Surface Mount |
| Circuit | SP4T |
| RF Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Insertion Loss | -1.7dB |
| Frequency Range | DC ~ 18GHz |
| Topology | Absorptive |
| P1dB | - |
| Test Frequency | 16GHz |
| Isolation | -13dB |
| Supplier Device Package | 24-LGA (5x4) |
| IIP3 | 73dBm |
