ADGM1001BCCZ

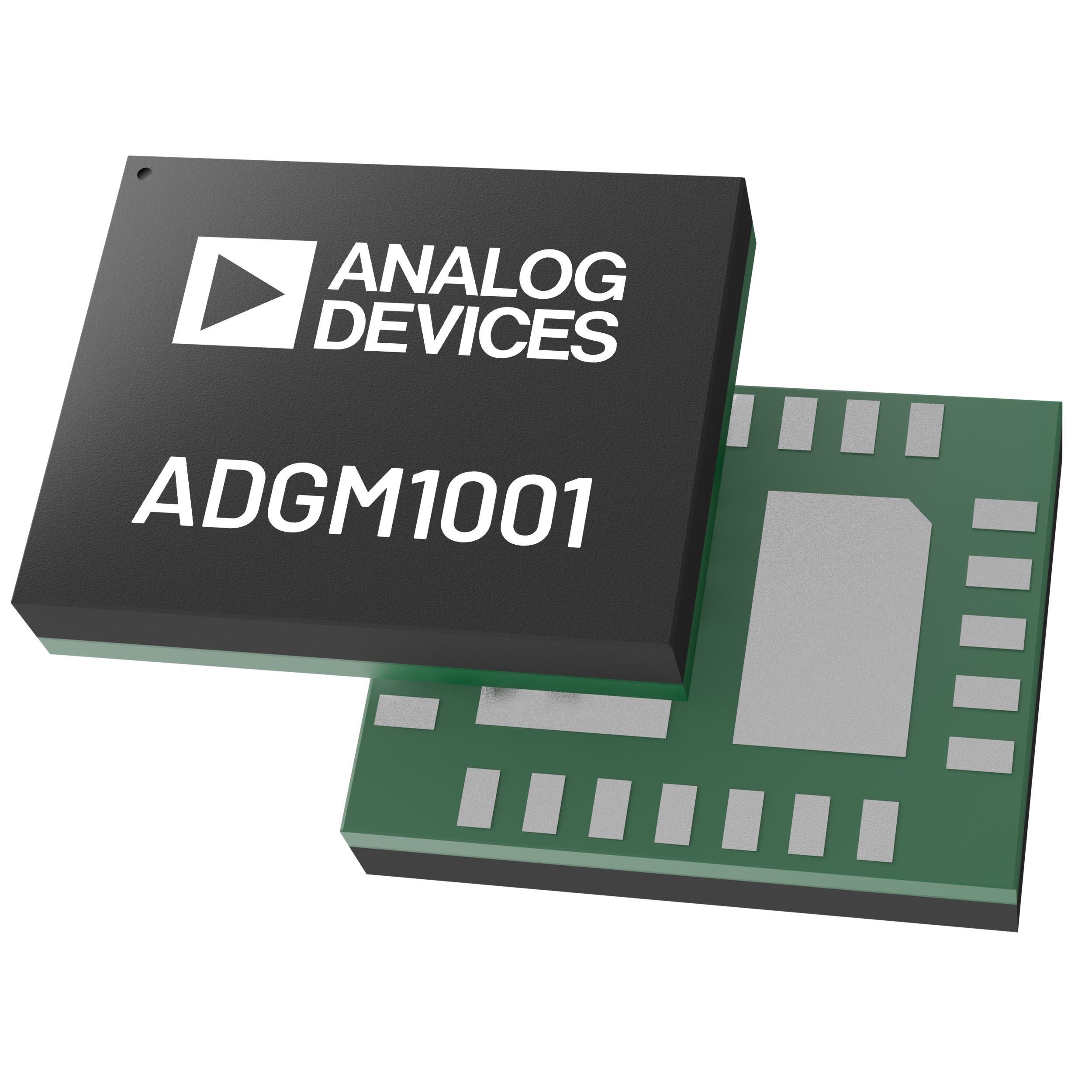

IC RF SWITCH SPDT 34GHZ 24LGAManufacturer: Analog Devices Inc.
Categories: RF Switches
Quality Control: Learn More
Analog Devices Inc. ADGM1001BCCZ is a single-pole, double-throw (SPDT) RF switch designed for general-purpose applications. This component operates across a frequency range of DC to 34 GHz, featuring a low insertion loss of 1.5 dB and high isolation of 19 dB at 34 GHz. The ADGM1001 series switch offers a characteristic impedance of 50 Ohms and exhibits an IIP3 of 76 dBm. It is housed in a compact 24-LGA (5x4) package with an exposed pad, suitable for surface mounting. The device operates within a supply voltage range of 3V to 3.6V and is rated for an operating temperature of -40°C to 85°C. This RF switch finds application in telecommunications, test and measurement equipment, and radar systems.
Additional Information
Series: ADGM1001RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 24-VFLGA Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| RF Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Insertion Loss | 1.5dB |
| Frequency Range | DC ~ 34GHz |
| Topology | - |
| P1dB | - |
| Test Frequency | 34GHz |
| Isolation | 19dB |
| Supplier Device Package | 24-LGA (5x4) |
| IIP3 | 76dBm |
| Grade | - |
| Qualification | - |
