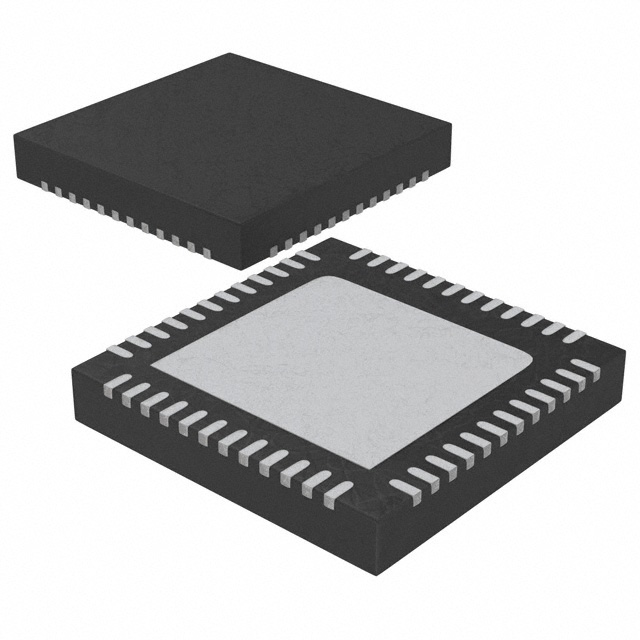

HMC1197LP7FE
RF MODULATOR 100MHZ-4GHZ 48VFQFNManufacturer: Analog Devices Inc.
Categories: RF Modulators
Quality Control: Learn More
Analog Devices Inc. HMC1197LP7FE is an RF modulator component designed for operation across a frequency range of 100MHz to 4GHz. This device, housed in a 48-VFQFN exposed pad package, offers a comprehensive solution for signal modulation applications. Key electrical specifications include a typical supply current of 320mA and dual supply voltage options of 3.3V and 5V. The HMC1197LP7FE exhibits an output power of 1.6dBm and a P1dB of 10.5dBm, with a noise floor of -160dBm/Hz. Tested at frequencies between 1.7GHz and 2.2GHz, this surface mount component is suitable for demanding RF systems in sectors such as aerospace and defense, wireless infrastructure, and test and measurement equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Modulator |
| Voltage - Supply | 3.3V, 5V |
| P1dB | 10.5dBm |
| Test Frequency | 1.7GHz ~ 2.2GHz |
| LO Frequency | - |
| RF Frequency | 100MHz ~ 4GHz |
| Output Power | 1.6dBm |
| Noise Floor | -160dBm/Hz |
| Supplier Device Package | 48-QFN (7x7) |
| Current - Supply | 320 mA |
