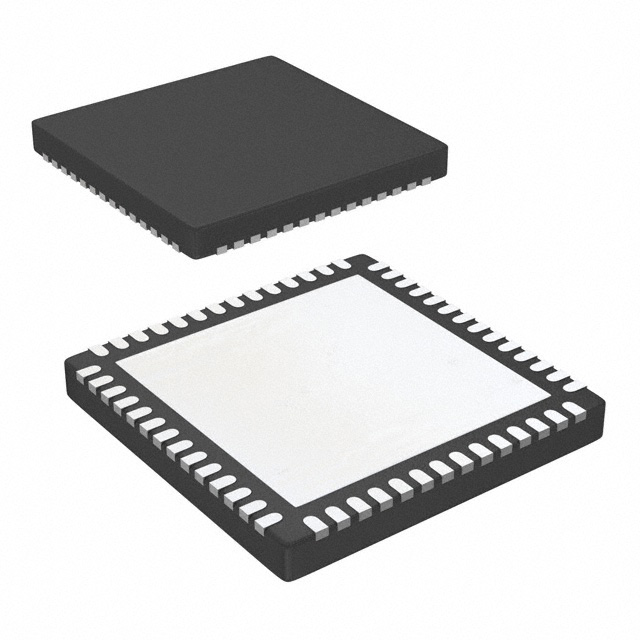

ADRF6755ACPZ
RF MODULATOR 100MHZ-2.4GHZ 56QFNManufacturer: Analog Devices Inc.
Categories: RF Modulators
Quality Control: Learn More
RF Modulator IC 100MHz ~ 2.4GHz 56-VFQFN Exposed Pad, CSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 56-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Function | Modulator |
| Voltage - Supply | 4.75V ~ 5.25V |
| P1dB | 9dBm |
| Test Frequency | 100MHz |
| LO Frequency | - |
| RF Frequency | 100MHz ~ 2.4GHz |
| Output Power | -1.7dBm |
| Noise Floor | -160.5dBm/Hz |
| Supplier Device Package | 56-LFCSP-VQ (8x7.75) |
| Current - Supply | 380 mA |
