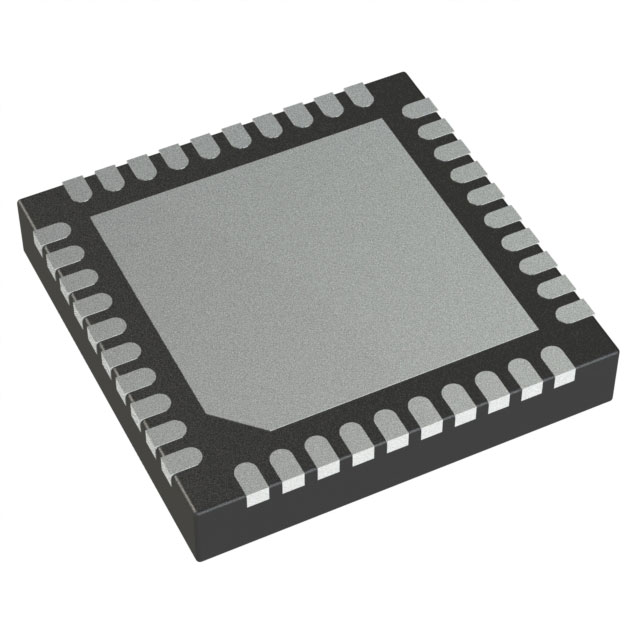

ADRF6720-27ACPZ-R7
RF MODULATOR 400MHZ-3GHZ 40WFQFNManufacturer: Analog Devices Inc.
Categories: RF Modulators
Quality Control: Learn More
Analog Devices Inc. ADRF6720-27ACPZ-R7 is a high-performance RF modulator designed for operation across a 400MHz to 3GHz frequency range. This component integrates a versatile modulator function suitable for demanding wireless applications. Featuring a wide LO frequency range from 356MHz to 2.855GHz, it supports precise signal generation. The device is supplied in a 40-WFQFN exposed pad, CSP package (also specified as 40-LFCSP-WQ (6x6)), requiring surface mount installation. Typical current consumption is 425 mA at a 3.3V supply voltage. Key performance metrics include an output power of 5dBm and a P1dB of 11dBm, with a noise floor of -162dBm/Hz at a test frequency of 2.14GHz. This modulator is utilized in industries such as telecommunications and defense.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Function | Modulator |
| Voltage - Supply | 3.3V |
| P1dB | 11dBm |
| Test Frequency | 2.14GHz |
| LO Frequency | 356MHz ~ 2.855GHz |
| RF Frequency | 400MHz ~ 3GHz |
| Output Power | 5dBm |
| Noise Floor | -162dBm/Hz |
| Supplier Device Package | 40-LFCSP-WQ (6x6) |
| Current - Supply | 425 mA |
