ADL5590ACPZ-R7
RF MODULATOR 869MHZ-960MHZ 36QFNManufacturer: Analog Devices Inc.
Categories: RF Modulators
Quality Control: Learn More
RF Modulator IC 869MHz ~ 960MHz 36-VFQFN Exposed Pad, CSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

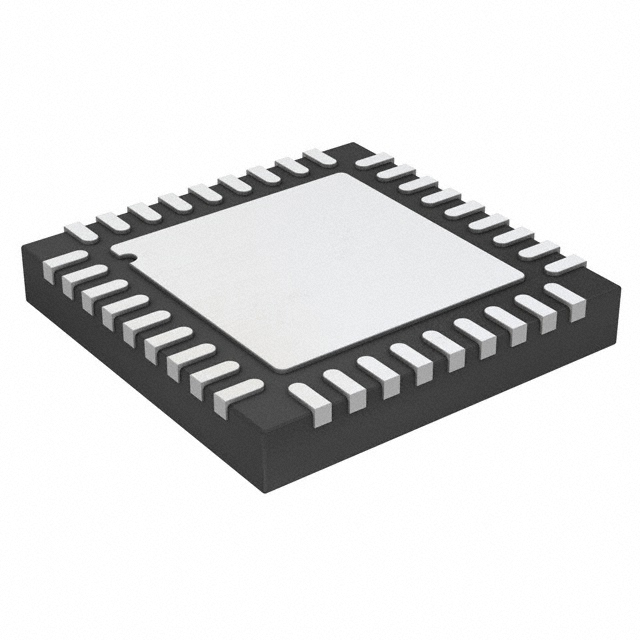

| Package / Case | 36-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Function | Modulator |
| Voltage - Supply | 4.75V ~ 5.25V |
| P1dB | 16dBm |
| Test Frequency | 940MHz |
| LO Frequency | - |
| RF Frequency | 869MHz ~ 960MHz |
| Output Power | 5.7dBm |
| Noise Floor | -156.6dBm/Hz |
| Supplier Device Package | 36-LFCSP-VQ (6x5.75) |
| Current - Supply | 170 mA |
