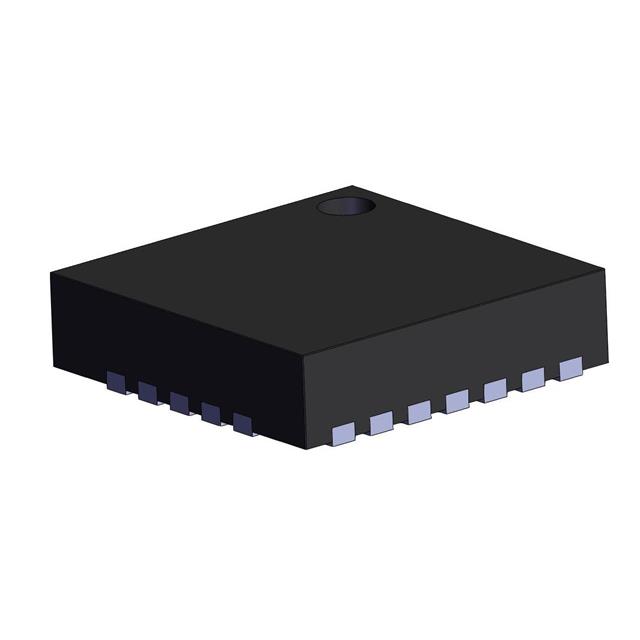

ADL5372ACPZ-WP

F-MOD QUADRATURE MODULATOR

Manufacturer: Analog Devices Inc.

Categories: RF Modulators

Quality Control: Learn More

RF Modulator IC 1.5GHz ~ 2.5GHz 24-WFQFN Exposed Pad, CSP

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:
Download Free CAD Model:Link image
Technical Details:
PackagingBulk
Package / Case24-WFQFN Exposed Pad, CSP
Mounting TypeSurface Mount
FunctionModulator
Voltage - Supply4.75V ~ 5.25V
P1dB12.4dBm
Test Frequency1.9GHz
LO Frequency1.5GHz ~ 2.5GHz
RF Frequency1.5GHz ~ 2.5GHz
Output Power7.2dBm
Noise Floor-158.5dBm/Hz
Supplier Device Package24-LFCSP-WQ (4x4)
Current - Supply165 mA
