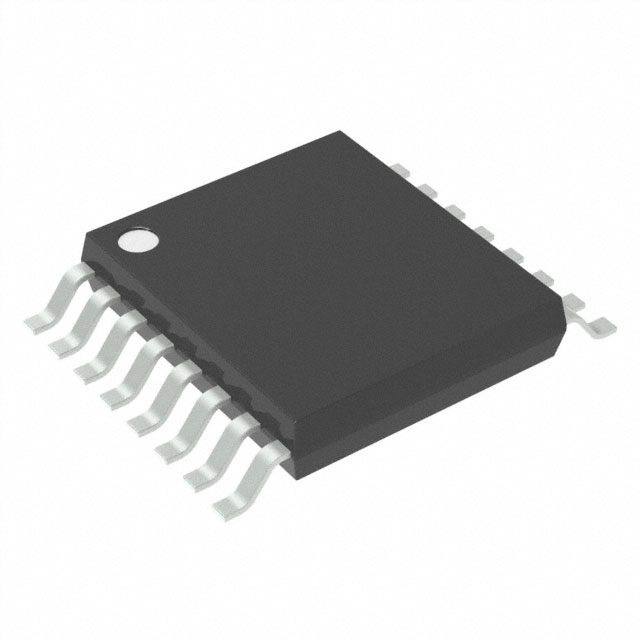

AD8349ARE
IC QUADRATURE MOD 700MHZ 16TSSOPManufacturer: Analog Devices Inc.
Categories: RF Modulators
Quality Control: Learn More
Analog Devices Inc.'s AD8349ARE is a high-performance RF Quadrature Modulator designed for demanding wireless applications. Operating across a broad LO frequency range of 700MHz to 2.7GHz, this component excels in applications requiring precise signal manipulation. Its 16-TSSOP (0.173", 4.40mm Width) Exposed Pad package facilitates robust surface mounting and efficient thermal management. With a typical supply current of 150mA and a voltage range of 4.75V to 5.5V, the AD8349ARE delivers an output power of 5.1dBm at a P1dB of 5.6dBm, tested at 2.14GHz. The device features a competitive noise floor of -156dBm/Hz, crucial for maintaining signal integrity. This component is well-suited for use in base stations, satellite communications, and other advanced RF front-end designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Modulator |
| Voltage - Supply | 4.75V ~ 5.5V |
| P1dB | 5.6dBm |
| Test Frequency | 2.14GHz |
| LO Frequency | 700MHz ~ 2.7GHz |
| RF Frequency | 700MHz ~ 2.7GHz |
| Output Power | 5.1dBm |
| Noise Floor | -156dBm/Hz |
| Supplier Device Package | 16-TSSOP-EP |
| Current - Supply | 150 mA |
