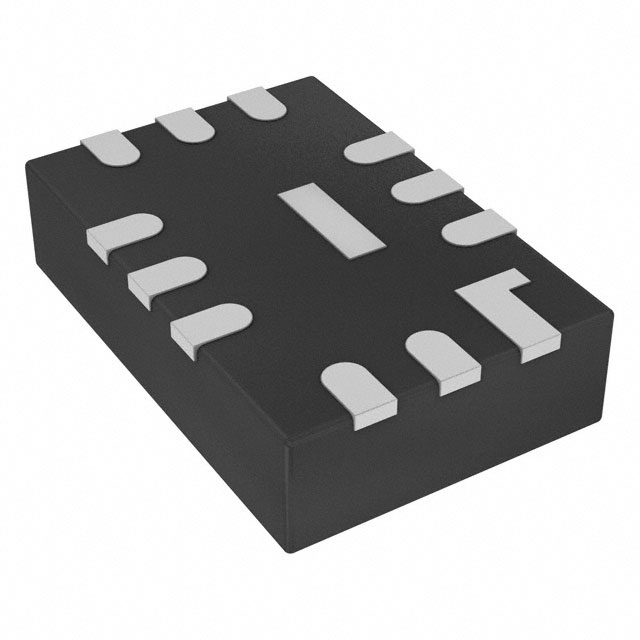

LTC5553IUDB#TRPBF
IC MIXR 3GHZ TO 20GHZ 12-QFNManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. LTC5553IUDB-TRPBF is a high-performance RF mixer designed for demanding applications. This electronic component operates across a broad frequency range of 3GHz to 20GHz, featuring a 12-QFN (3x2) package with an exposed pad for enhanced thermal management. The device requires a 3.3V supply and draws a current of 132mA. With a typical noise figure of 12.8dB, the LTC5553IUDB-TRPBF is suitable for use in advanced wireless infrastructure, satellite communications, and electronic warfare systems. Its surface mount configuration and tape and reel packaging facilitate efficient automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| RF Type | - |
| Voltage - Supply | 3.3V |
| Gain | - |
| Current - Supply | 132mA |
| Secondary Attributes | - |
| Noise Figure | 12.8dB |
| Supplier Device Package | 12-QFN (3x2) |
