LTC5551IUF
IC POWER MANAGEMENTManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. LTC5551IUF is a single-balanced, broadband RF mixer designed for cellular and GSM applications. This high-performance down-converter operates across a frequency range of 300MHz to 3.5GHz, offering a typical conversion gain of 3.2dB and a noise figure of 10.9dB. The device is packaged in a 16-QFN (4x4) with an exposed pad for efficient thermal management, suitable for surface mount applications. It requires a supply voltage between 2.5V and 3.6V and draws a quiescent current of 204mA. The LTC5551IUF is utilized in wireless infrastructure and communication systems requiring precise RF signal mixing.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

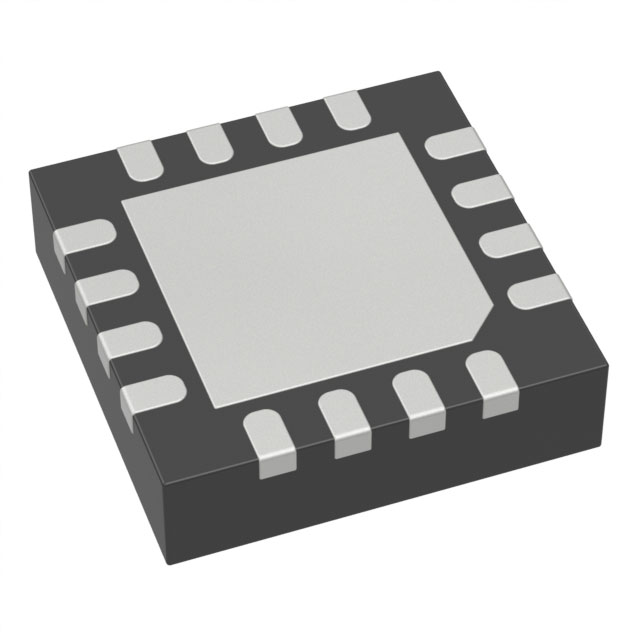

| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 300MHz ~ 3.5GHz |
| RF Type | Cellular, GSM |
| Voltage - Supply | 2.5V ~ 3.6V |
| Gain | 3.2dB |
| Current - Supply | 204mA |
| Secondary Attributes | Down Converter |
| Noise Figure | 10.9dB |
| Number of Mixers | 1 |
| Supplier Device Package | 16-QFN (4x4) |
Request a Quote
