HMC663LC3TR
IC MMIC MIXER LO/IF AMP 16-QFNManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More

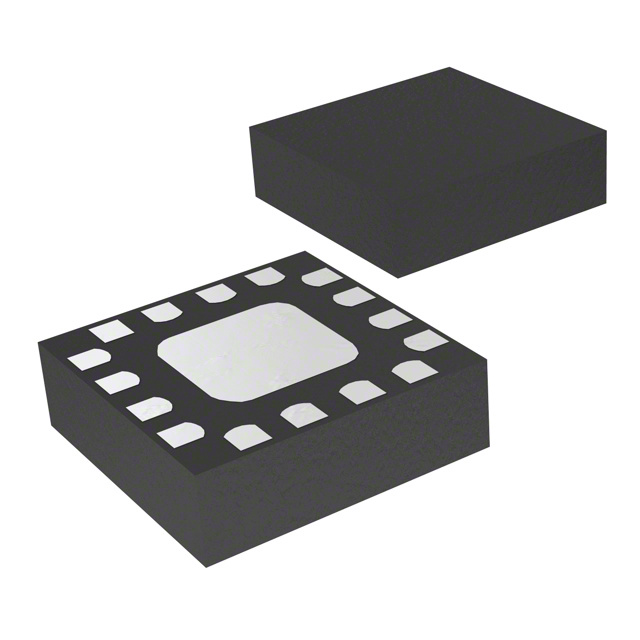

Analog Devices Inc. HMC663LC3TR is a general-purpose RF mixer IC designed for up/down conversion applications. This MMIC mixer operates across a frequency range of 6GHz to 12GHz, featuring an integrated LO/IF amplifier. The HMC663LC3TR is housed in a 16-CSMT (3x3) package, designed for surface mounting. Its typical noise figure is 10dB, and it incorporates a single mixer. This component finds application in various RF systems, including wireless infrastructure and test and measurement equipment. The part number HMC663LC3TR is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFCQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 6GHz ~ 12GHz |
| RF Type | General Purpose |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | Up/Down Converter |
| Noise Figure | 10dB |
| Number of Mixers | 1 |
| Supplier Device Package | 16-CSMT (3x3) |
