HMC560ALM3TR
GAAS MMIC DBL-BAL MIX SMT, 24 -Manufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More

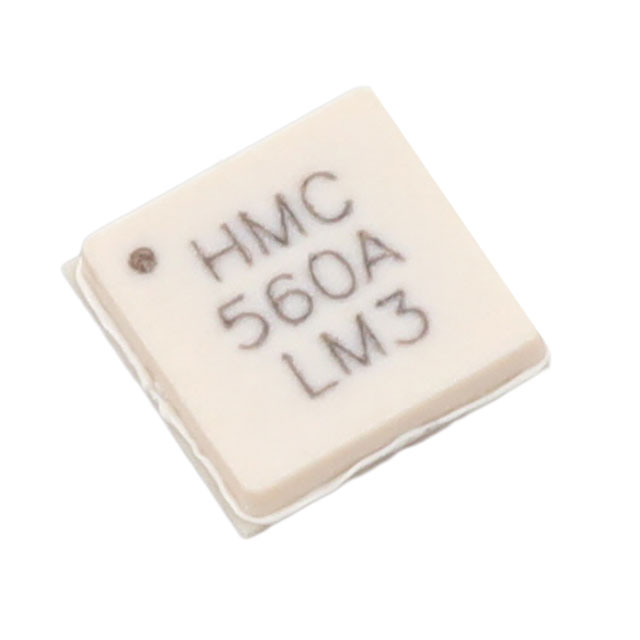

Analog Devices Inc. HMC560ALM3TR is a GaAs MMIC double-balanced mixer designed for VSAT up/down conversion applications. This surface-mount component operates across a frequency range of 22GHz to 38GHz, featuring a typical noise figure of 11.5dB. The device is packaged in a 6-LGA-CAV (5.08x5.08) with an exposed pad, suitable for high-frequency performance. This mixer is employed in applications requiring precise RF signal translation within satellite communication systems and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TLGA Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 22GHz ~ 38GHz |
| RF Type | VSAT |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | Up/Down Converter |
| Noise Figure | 11.5dB |
| Number of Mixers | 1 |
| Supplier Device Package | 6-LGA-CAV (5.08x5.08) |
