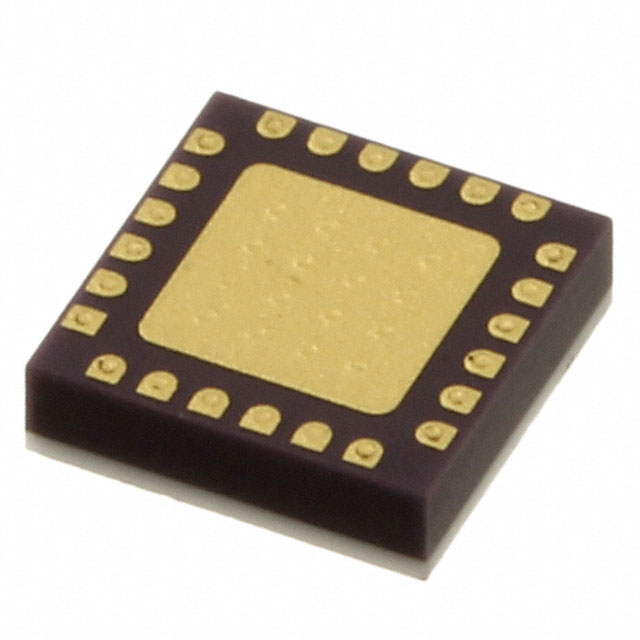

HMC521-EGM
IC MMIC IQ MIXERManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC521-EGM is a 24-pin SMT (4x4) MMIC IQ mixer designed for RF applications. This component operates within the 8.5GHz to 13.5GHz frequency range, functioning as an up-converter for radar systems. Featuring two integrated mixers, the HMC521-EGM is suitable for demanding radar, electronic warfare, and test and measurement applications. Its surface mount packaging facilitates efficient assembly on printed circuit boards.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 8.5GHz ~ 13.5GHz |
| RF Type | Radar |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | Up Converter |
| Noise Figure | - |
| Number of Mixers | 2 |
| Supplier Device Package | 24-SMT (4x4) |
