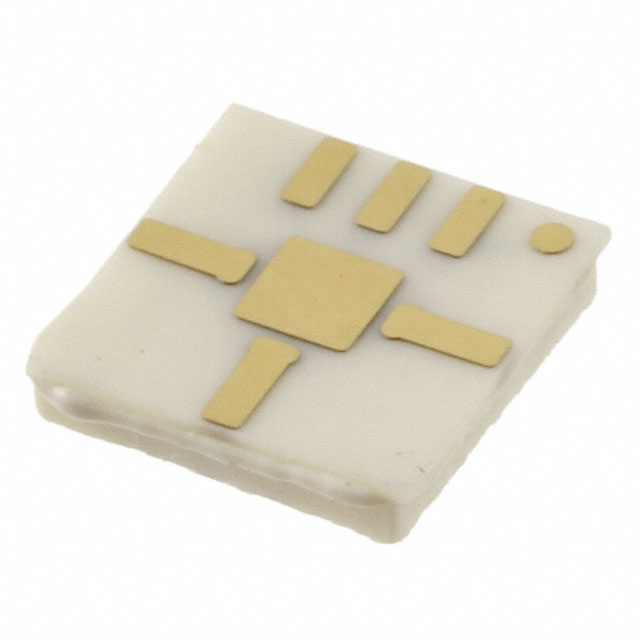

HMC329LM3TR
IC MMIC IQ MIXER 26-40GHZ 6SMDManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC329LM3TR is a single-balanced MMIC IQ mixer designed for general-purpose RF applications. This surface-mount component operates across a wide frequency range of 26GHz to 40GHz, functioning as an up or downconverter. The 6-SMT package facilitates integration into compact designs. Key performance metrics include a noise figure of 9dB. This mixer is suitable for demanding applications in radar systems, satellite communications, and electronic warfare.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Mounting Type | Surface Mount |
| Frequency | 26GHz ~ 40GHz |
| RF Type | General Purpose |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | Up/Down Converter |
| Noise Figure | 9dB |
| Number of Mixers | 1 |
| Supplier Device Package | 6-SMT |
