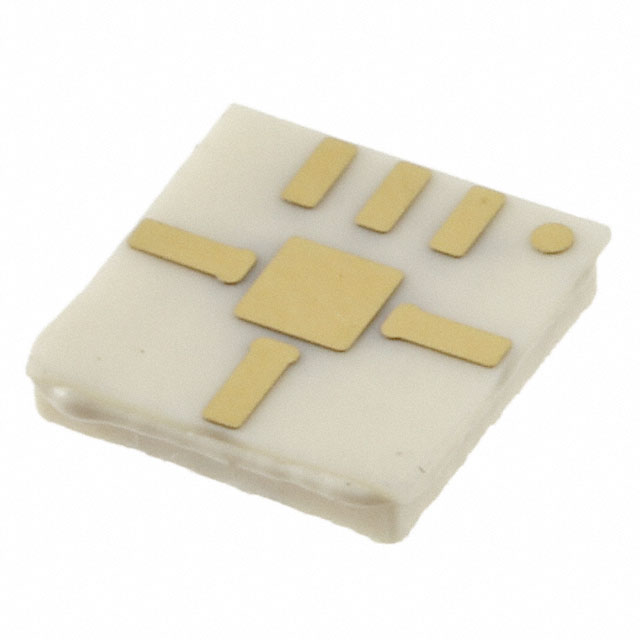

HMC264LM3TR
IC MIXER SUB-HARMONIC CERAMICManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC264LM3TR is a single-balanced, passive RF mixer designed for operation from 20GHz to 30GHz. This mixer utilizes a sub-harmonic LO pumping scheme and is housed in a compact 6-SMT (5.08x5.08) package, suitable for surface mount applications. With a typical noise figure of 9dB and a current draw of 28mA at a 3V supply, the HMC264LM3TR is optimized for robust performance in demanding RF and microwave systems. It finds application in various high-frequency communication infrastructure, radar systems, and electronic warfare platforms. The device operates within a supply voltage range of 3V to 4V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 20GHz ~ 30GHz |
| RF Type | - |
| Voltage - Supply | 3V ~ 4V |
| Gain | - |
| Current - Supply | 28mA |
| Secondary Attributes | - |
| Noise Figure | 9dB |
| Number of Mixers | 1 |
| Supplier Device Package | 6-SMT (5.08x5.08) |
