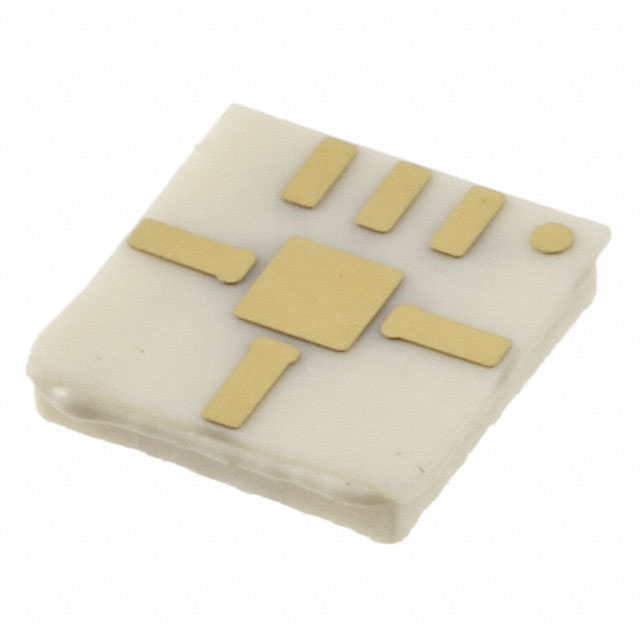

HMC264LM3
IC MIXER SUB-HARMONIC CERAMICManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC264LM3 is a general-purpose RF mixer IC operating across the 20GHz to 30GHz frequency range. This monolithic microwave integrated circuit (MMIC) features a sub-harmonic mixing architecture, suitable for demanding radar, satellite communications, and electronic warfare applications. The device requires a supply voltage between 3V and 4V, drawing a typical current of 28mA. Designed for surface mounting, it is provided in a compact 6-SMT (5.08x5.08) package. The HMC264LM3 exhibits a noise figure of 9dB, facilitating efficient signal processing in high-frequency systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 6-TQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 20GHz ~ 30GHz |
| RF Type | General Purpose |
| Voltage - Supply | 3V ~ 4V |
| Gain | - |
| Current - Supply | 28mA |
| Secondary Attributes | - |
| Noise Figure | 9dB |
| Number of Mixers | 1 |
| Supplier Device Package | 6-SMT (5.08x5.08) |
