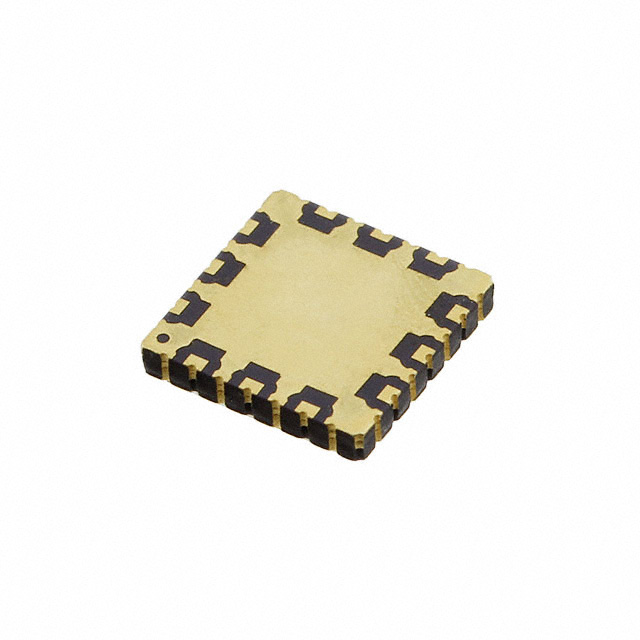

HMC144LH5
IC MMIC MIXER DBL-BAL CERAMICManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC144LH5 is a single-balanced, general-purpose MMIC mixer designed for up/down conversion applications. This RF mixer operates across a broad frequency range of 6GHz to 20GHz. It features a 12-lead ceramic surface-mount package (12-CSMT (5x5)) with a typical noise figure of 11dB. The HMC144LH5 is suitable for demanding RF and microwave systems, finding application in areas such as wireless communications infrastructure, radar systems, and electronic warfare.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 12-LCQFN |
| Mounting Type | Surface Mount |
| Frequency | 6GHz ~ 20GHz |
| RF Type | General Purpose |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | Up/Down Converter |
| Noise Figure | 11dB |
| Number of Mixers | 1 |
| Supplier Device Package | 12-CSMT (5x5) |
