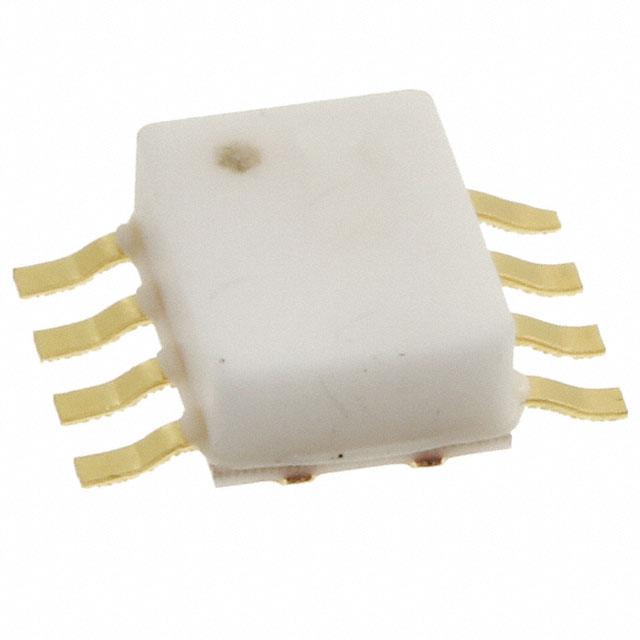

HMC142C8
IC MMIC MIXER DBL-BAL 8SMTManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC142C8 is a single-balanced, general-purpose MMIC mixer designed for RF up and down-conversion applications operating across a 6GHz to 15GHz frequency range. This component features an 8-SOIC package suitable for surface mounting, with a typical noise figure of 8.5dB. Its robust design makes it suitable for demanding applications in wireless communication infrastructure, satellite communications, and electronic warfare systems. The HMC142C8's performance characteristics are optimized for efficient signal mixing and conversion in these critical sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDownload Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Frequency | 6GHz ~ 15GHz |
| RF Type | General Purpose |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | Up/Down Converter |
| Noise Figure | 8.5dB |
| Number of Mixers | 1 |
| Supplier Device Package | 8-SOIC |
