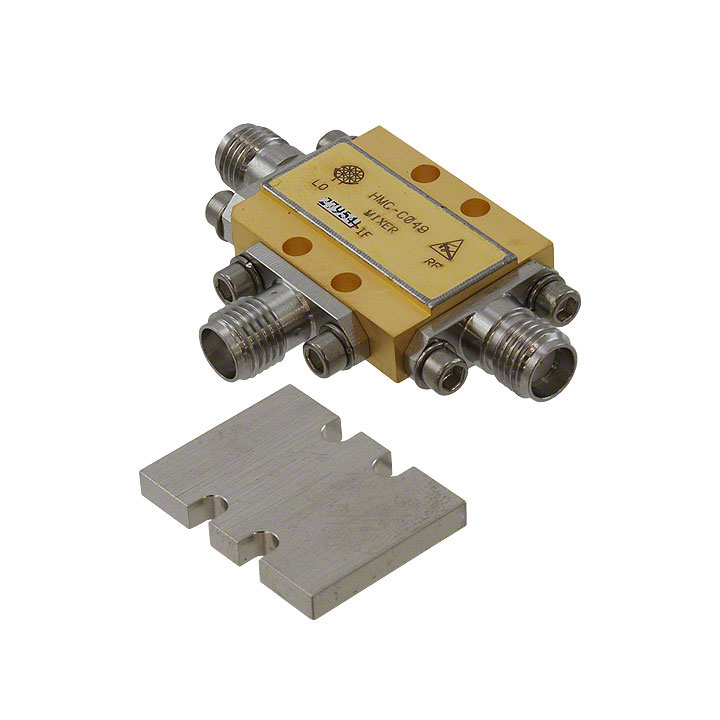

HMC-C049
MODULE MMIC MIXER DBL BAL GAASManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC-C049 is a general-purpose RF mixer module operating from 7GHz to 14GHz. This double-balanced GaAs MMIC mixer features SMA connectors for convenient system integration. With a typical noise figure of 7dB, it is engineered for demanding RF signal processing applications. The HMC-C049 is suitable for use in advanced wireless communication systems, radar, and electronic warfare platforms. Its robust design and performance characteristics make it a reliable choice for high-frequency signal manipulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 7GHz ~ 14GHz |
| RF Type | General Purpose |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | SMA Connectors |
| Noise Figure | 7dB |
| Number of Mixers | 1 |
| Supplier Device Package | Module |
