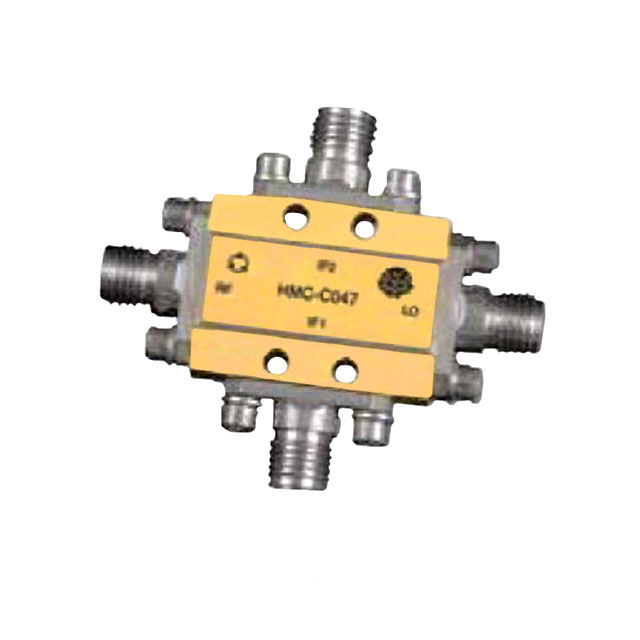

HMC-C047
I/Q MIX MODULE 30 - 38 GHZManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC-C047 is a high-performance RF mixer module designed for operation within the 30 GHz to 38 GHz frequency range. This module features two integrated mixers, making it suitable for demanding VSAT applications and other advanced radio frequency systems. Its connector mount design with SMA connectors facilitates straightforward integration into existing RF architectures. The HMC-C047 is a robust solution for systems requiring precise signal downconversion in the millimeter-wave spectrum.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 30GHz ~ 38GHz |
| RF Type | VSAT |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | - |
| Noise Figure | - |
| Number of Mixers | 2 |
| Supplier Device Package | Module |
Request a Quote
