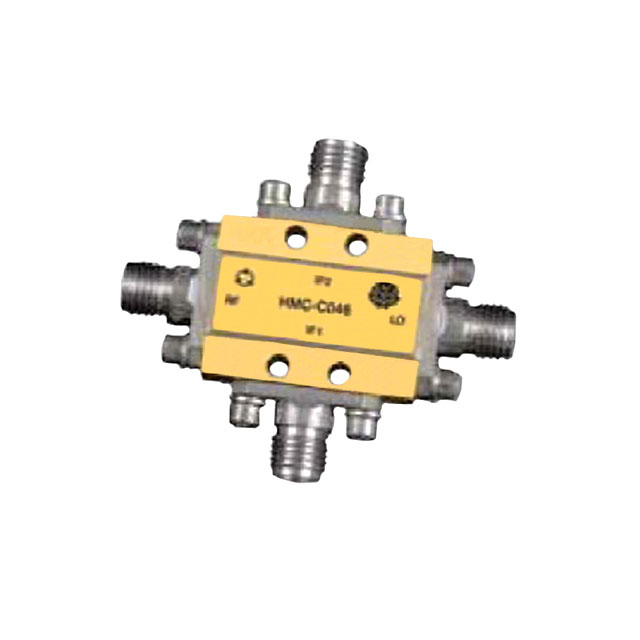

HMC-C046
I/Q MIX MODULE 20 - 31 GHZManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC-C046 is a high-performance RF mixer module designed for operation across a 20 GHz to 31 GHz frequency range. This module, featuring two internal mixers, is optimized for VSAT applications requiring precise signal down-conversion. Its robust construction with SMA connectors ensures reliable connectivity in demanding environments. The HMC-C046 is suitable for advanced telecommunications, satellite communication systems, and radar applications where superior RF performance is critical. The module is supplied in box packaging for ease of integration into existing RF chains.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 20GHz ~ 31GHz |
| RF Type | VSAT |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | - |
| Noise Figure | - |
| Number of Mixers | 2 |
| Supplier Device Package | Module |
Request a Quote
